Castle Creations Cobra 8 6S ESC w/1515-2200KV V2 Gold Motor CC010-0172-04

Introducing the Cobra 8, Castle's next-generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 6.8 kg (15 lbs).

The Cobra 8 features a state-of-the-art 32-bit dual-core processor for precision and performance. Enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to analyze vehicle performance like never before.

Crafted with a CNC aluminium bottom case, the Cobra 8 is designed to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure. With CRYO-DRIVE technology, operational temperatures are reduced, significantly prolonging the ESC's lifespan. An integrated 8-amp BEC powers even the most demanding servos.

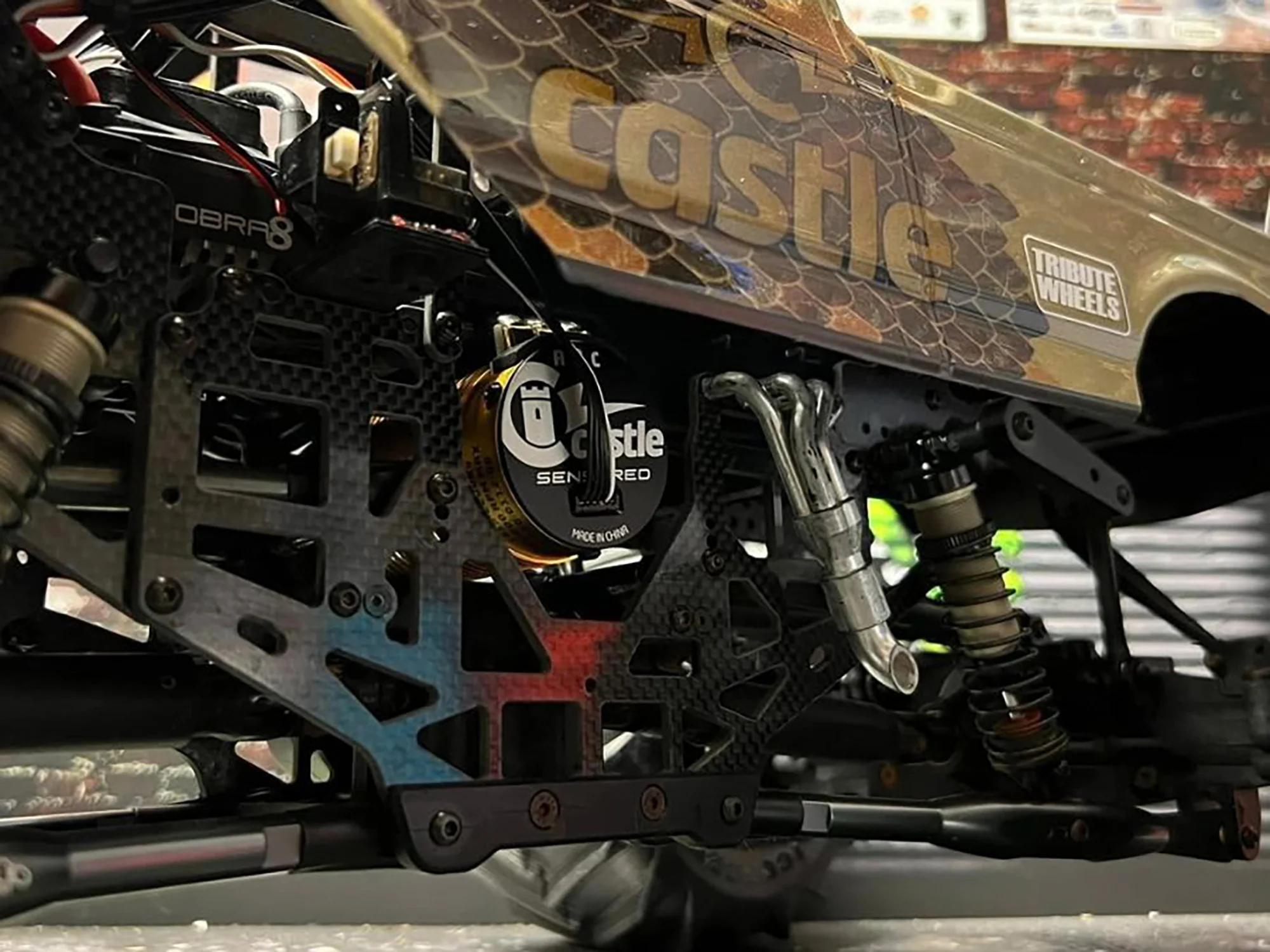

The Cobra 8 ESC is packaged with three Castle 4-pole 12-slot motor options, including the Castle 1515-2200Kv Sensored Motor. This motor combo is perfect for monster trucks with up to 6S LiPo packs (4S is ideal), 1:8 scale buggies, truggies, on-road vehicles, and 1:10 scale monster trucks up to 6.8 kg (15 lbs). The gold 1515-2200Kv V2 motor pairs seamlessly with the Cobra 8 ESC for unmatched speed, control, and performance.

In The Box:

• Cobra 8 ESC
• 1515-2200Kv Sensored Brushless Motor
• Castle Link V4 USB Adapter
• 300mm Direct Connect Sensor Wire
• Cobra Decals
• ESC Quick Start Guide

ESC Features:

• 32-Bit Processing power for smoother motor control and improved response time

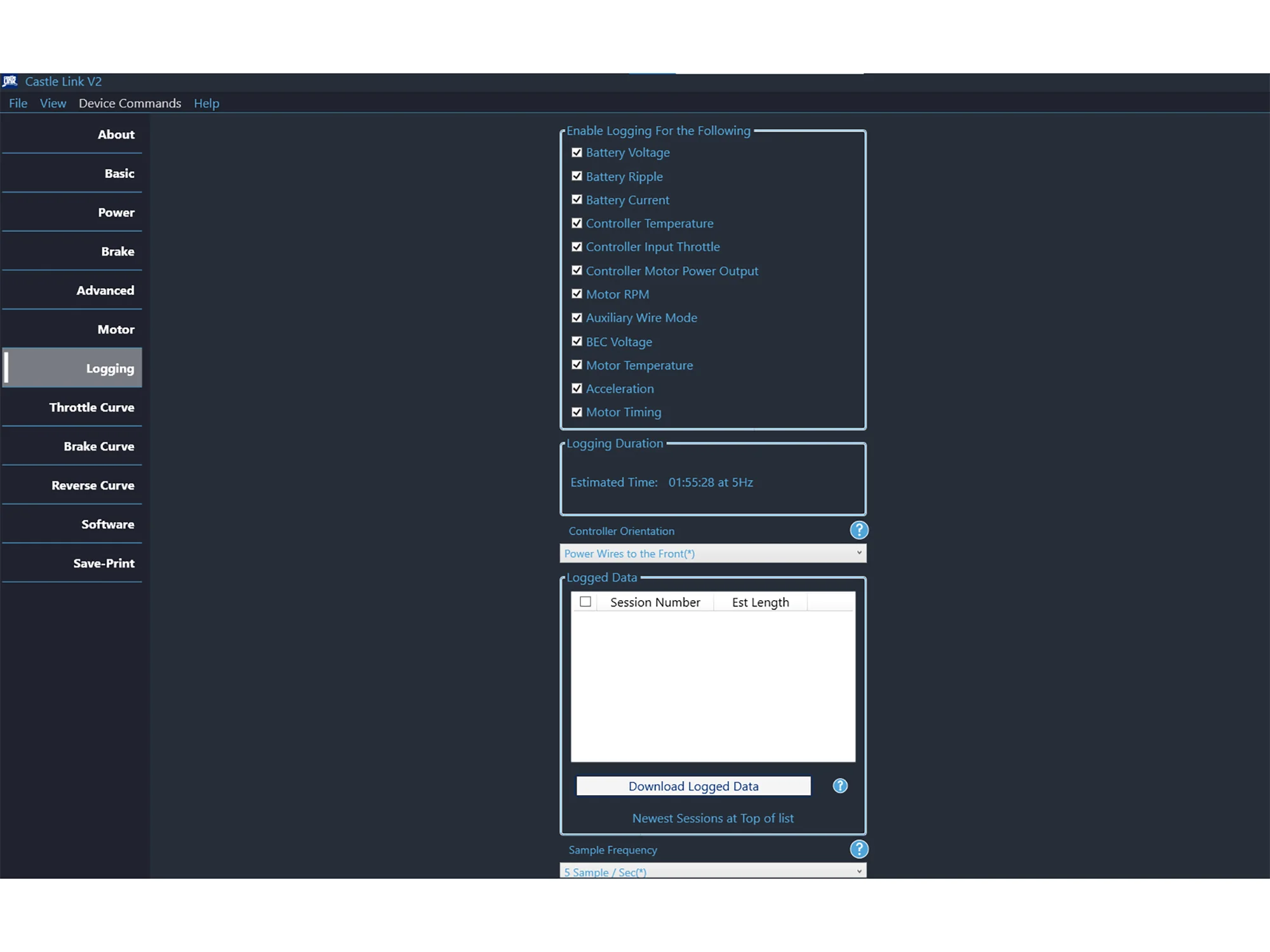

• Enhanced Data Logging:
  • Double the maximum sample frequency of previous generations
  • 8x increased logging time
  • Data points for ESC electrical motor timing and acceleration via onboard accelerometer
  • Looping feature prevents interruptions in data log recording
  • Ability to download specific sessions
• Additional Tuning Features:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V - 8.0V adjustable in 0.1V increments)

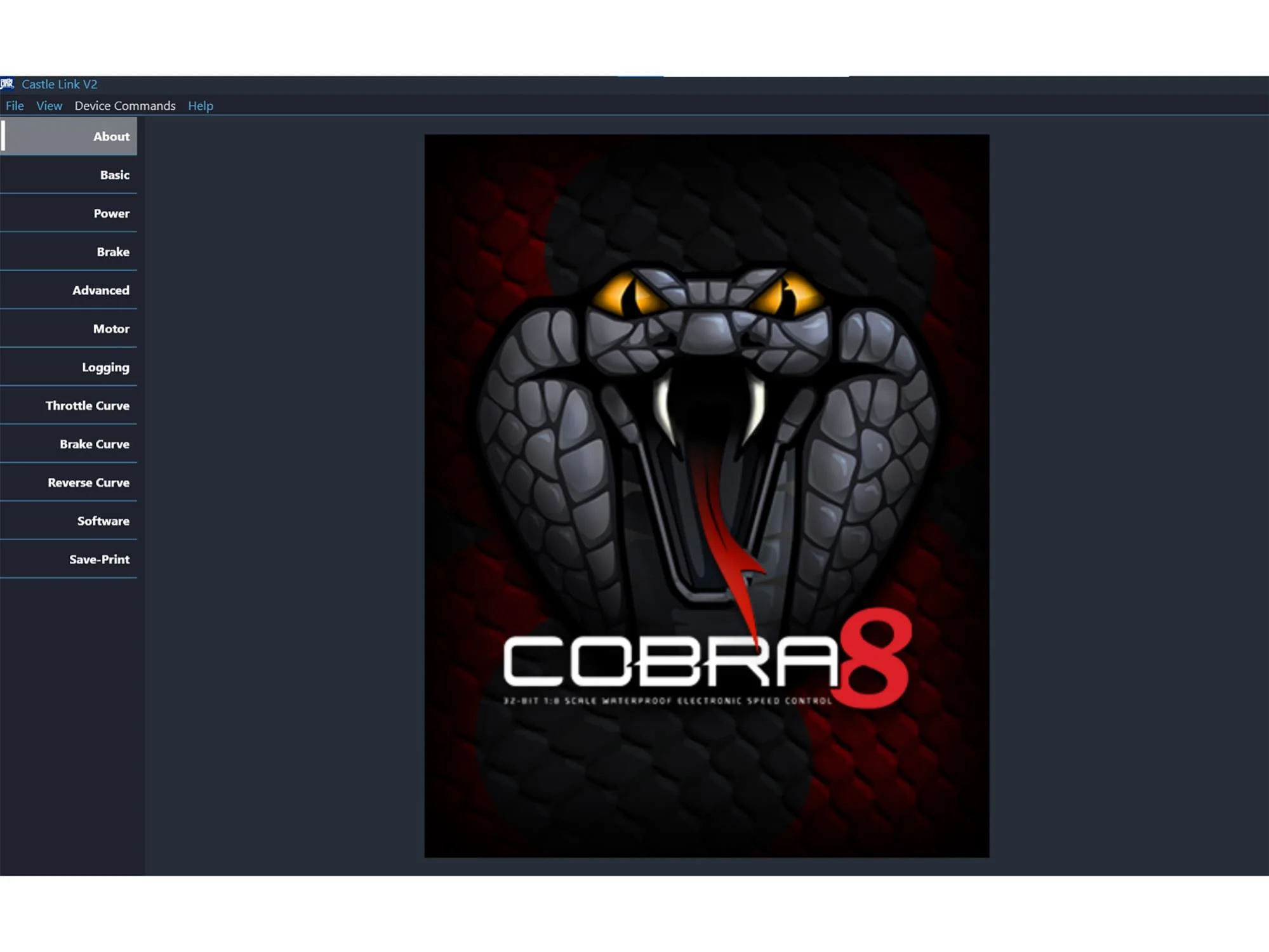

• Access to tuning options and firmware updates via Castle Link V4 USB programmer (USB-C, Windows 10+)
• Mounting holes located in bottom of aluminium case
• Input Voltage Range: 6.0V - 25.2V (2S - 6S LiPo)
• SmartSense, Sensored Only, and Brushed Motor Operation Modes
• Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
• CRYO-DRIVE Technology for improved thermal performance
• Rugged CNC aluminium case, potted in waterproof epoxy
• Premium forged heatsink with elliptical fins for superior airflow and heat dissipation
• Oversized factory-equipped 30mm thermally controlled cooling fan
• Waterproof design for all weather conditions
• Data logging capability to capture and record vehicle performance
• Auxiliary wire for ""on-the-fly"" transmitter adjustments
• Audible alerts for motor over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Includes Castle Link V4 USB adapter for Windows
