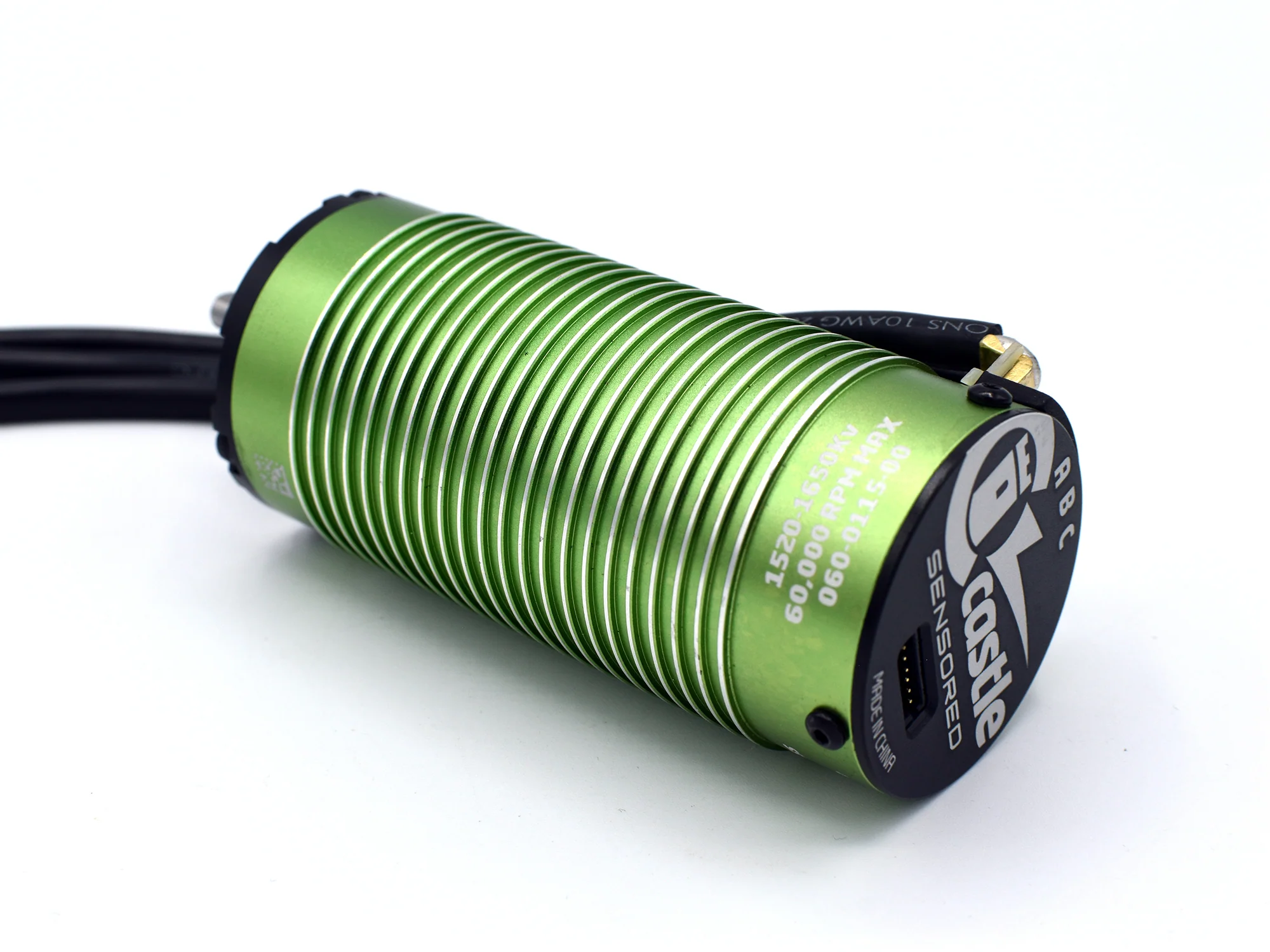

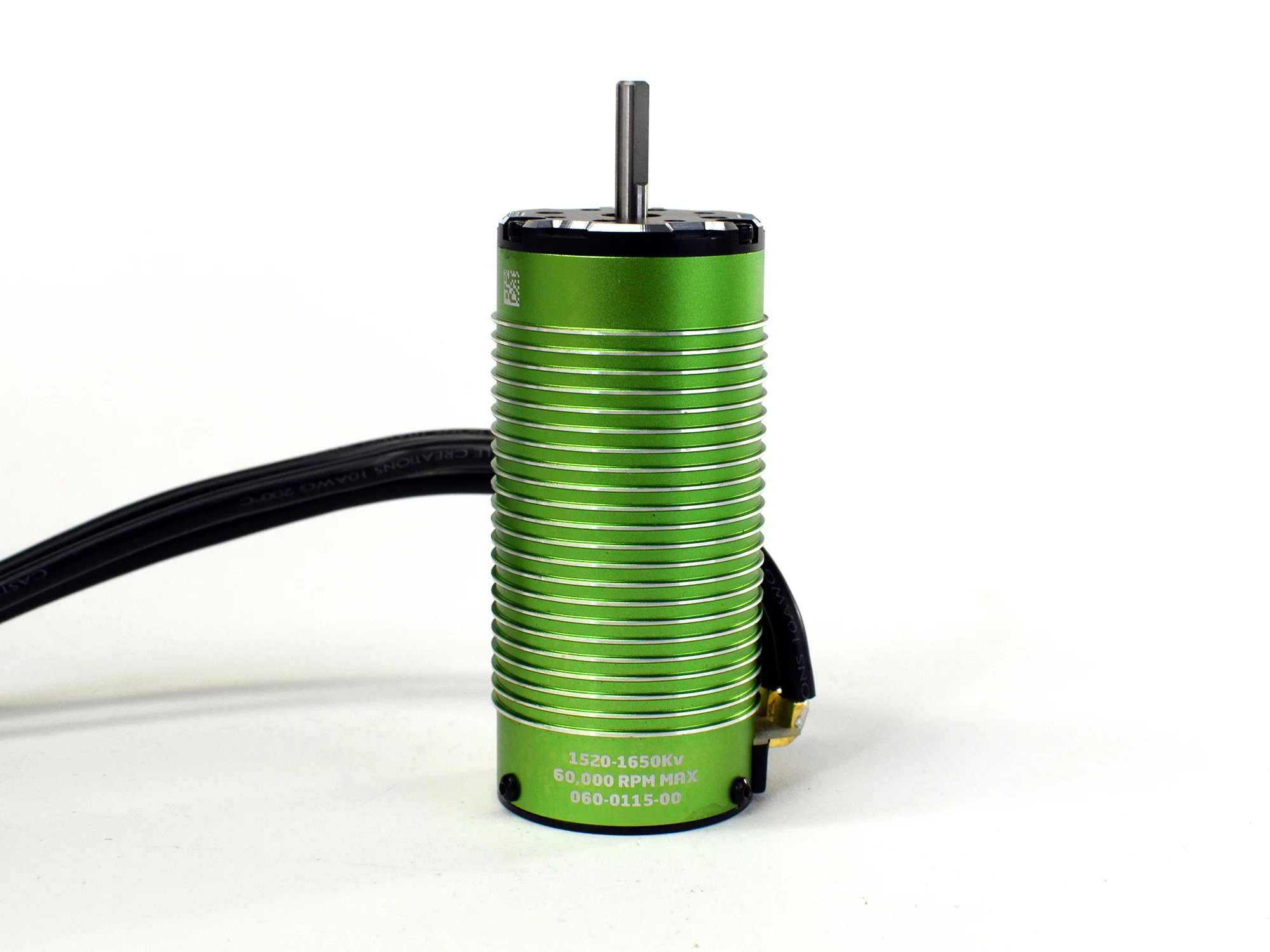

Castle Creations MOTOR, 4-POLE SENSORED BRUSHLESS 1520-1650KV V2 CC060-0115-00

Castle's commitment to excellence drives them to refine the user experience, optimize performance, and ensure that every aspect of their products is meticulously designed to provide the utmost satisfaction.

Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1520-1650Kv V2. The rotor and stator have been completely redesigned to improve magnetic flux.

This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times.

Application

Ideal for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 8.16Kg and running up to 8s LiPo.

Vehicle Examples

Losi LST2-E; Arrma: Limitless, Typhon 6s, Kraton 6s, Kraton EXB, Infraction Felony 6s, Notorious 6s, Talion 6s; Kyosho Inferno; Traxxas: E-Maxx, E-Revo, UDR, Summit; Redcat Shredder.

Note

Recommendations based on vehicle weight and motor capabilities. Verify motor fitment, as optional motor mount may be required.

Motor Features

• Input Voltage range: 3s-8s LiPo
• Redesigned rotor and stator assemblies
• Reduced magnetic cogging, producing less residual drag brake
• Increased efficiency, resulting in lower temperatures and longer run times
• Smoother start-up, reducing cogging or stuttering when starting from a stop
• High-Strength Kevlar Wrap and 180°C Grade Neodymium Sintered Magnets
• Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
• 10 AWG High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
• High-Performance 0.2mm Steel Lamination Stacked Stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with high-quality temperature-stabilized sensors
• T6 Aluminium CNC machined front and rear end bell
