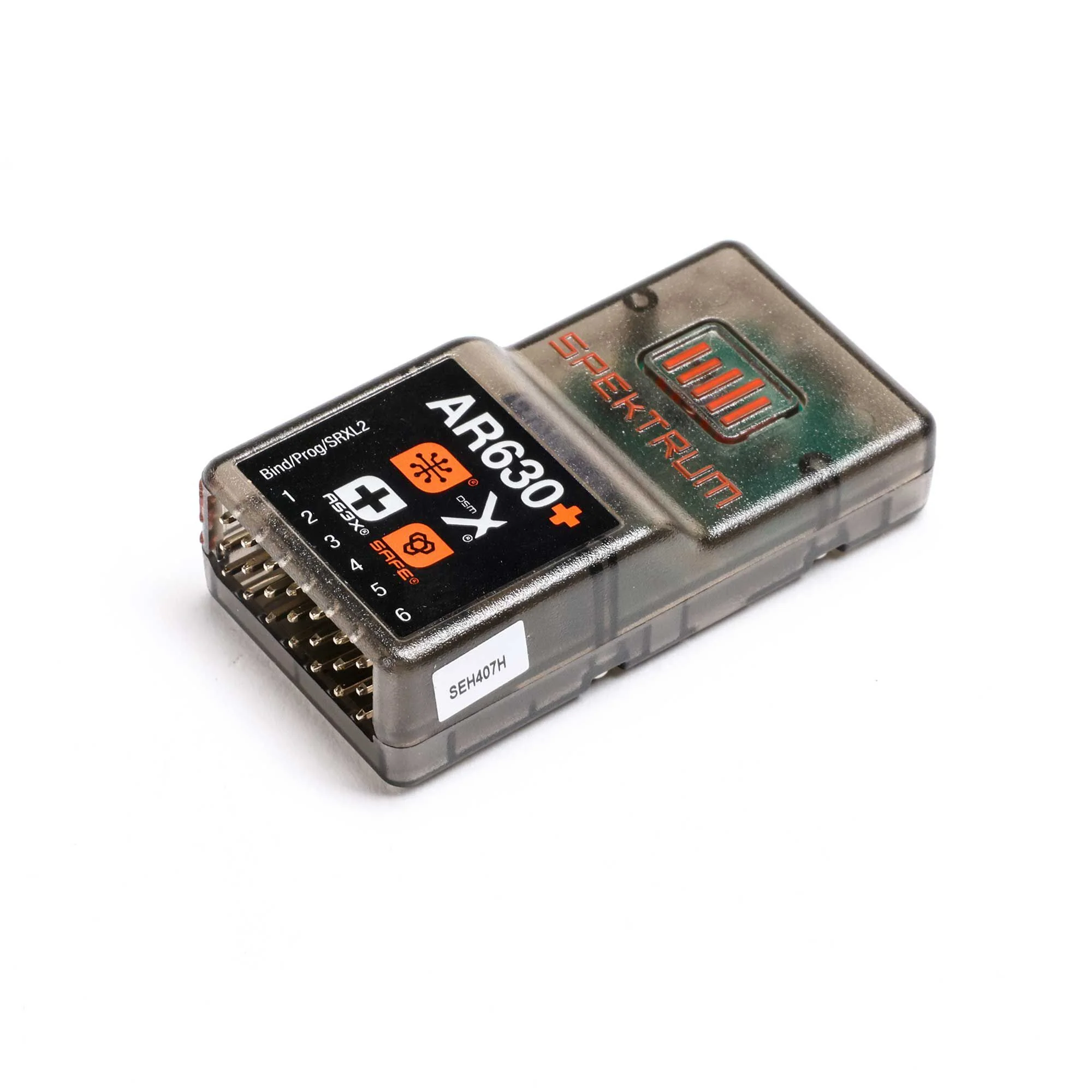

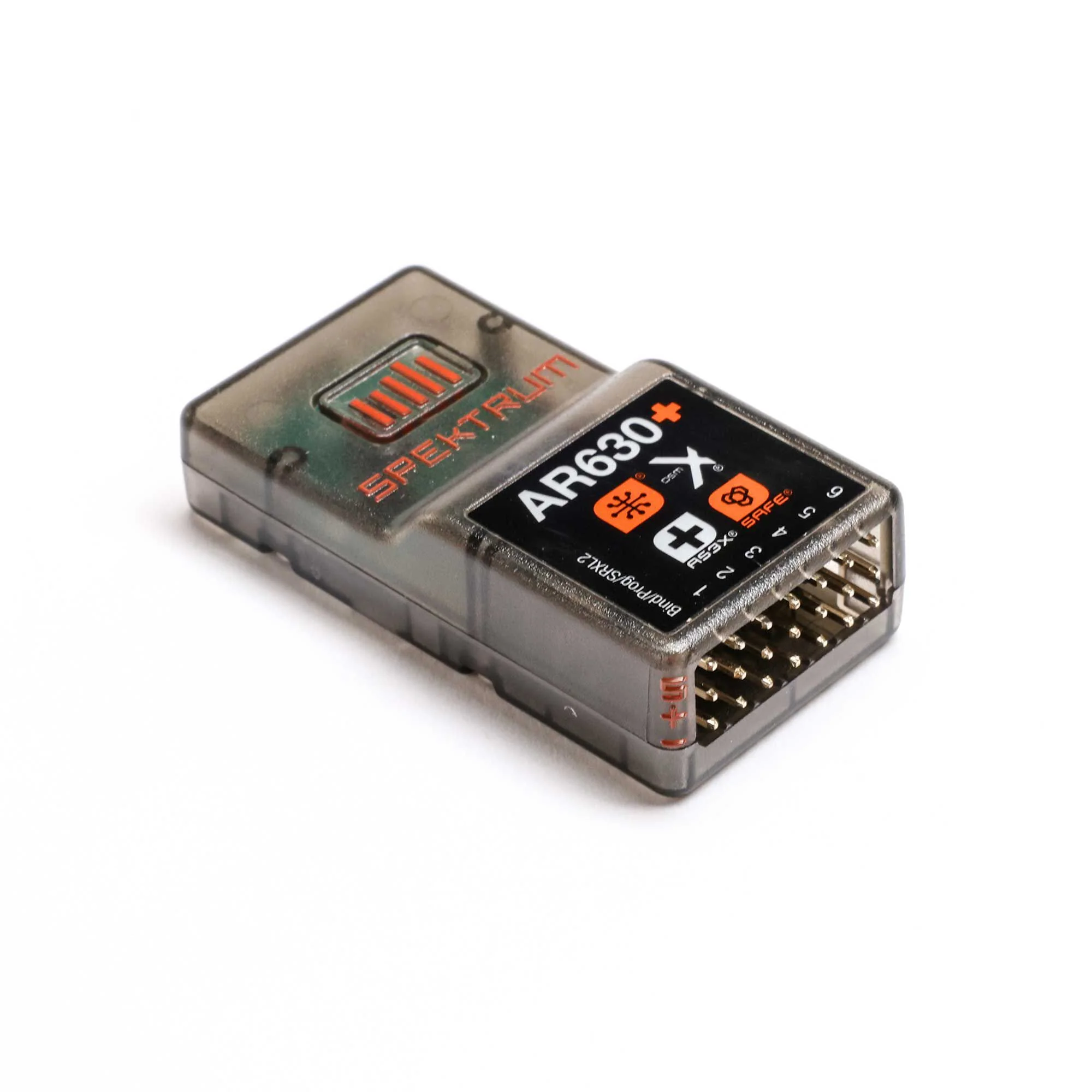

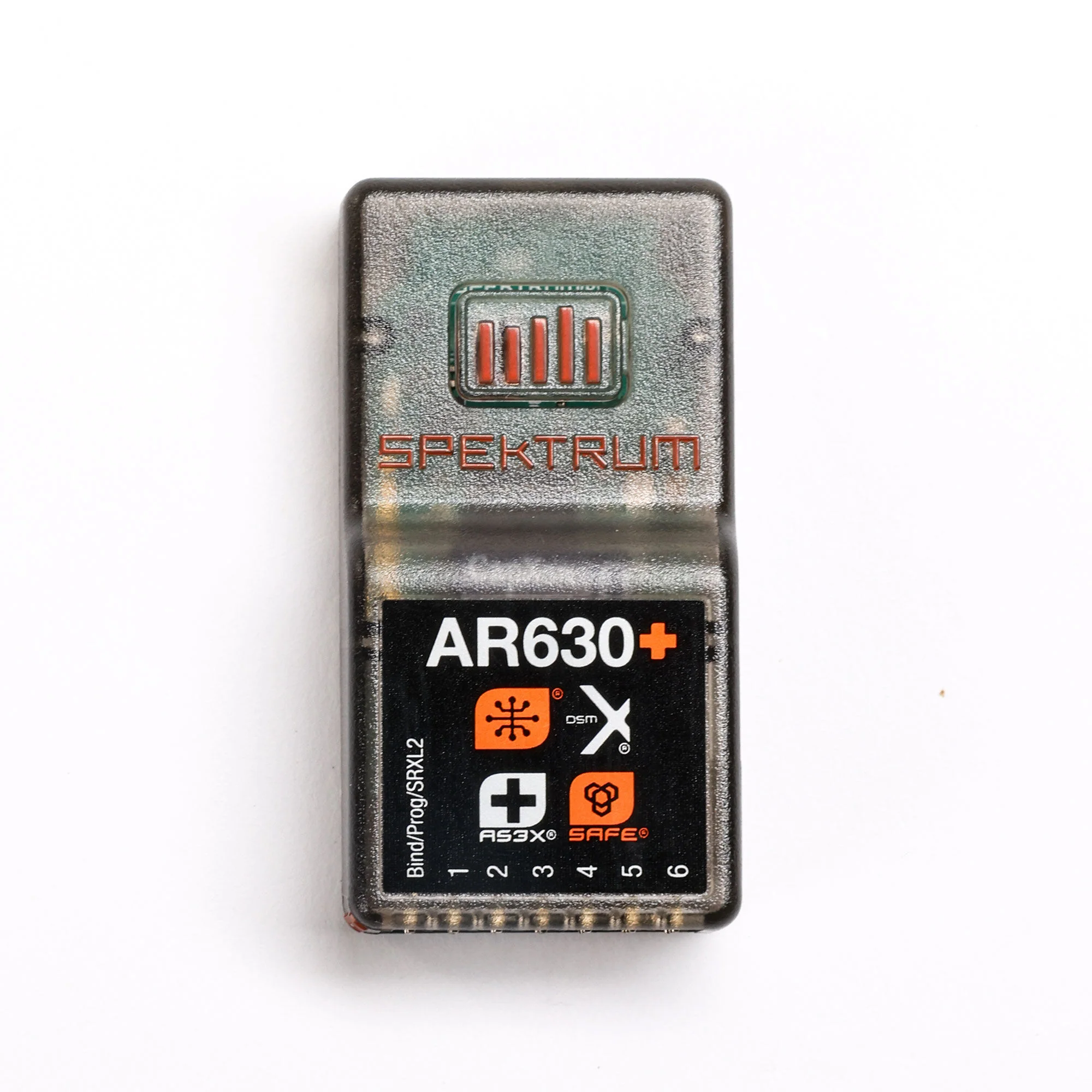

Spektrum AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver SPM-1030
The AR630+ features fly-by-range telemetry, a bind button for easy binding with no plugs necessary, SmartSafe technology, Hold Last, and preset failsafe types set through Forward Programming. It also supports Smart Telemetry and Smart Throttle, and allows Smart Model Files so BNF models can be stored on the receiver to automatically set the model at bind.
With Smart Technology, the normal servo connector delivers the throttle signal to the ESC, while the ESC sends telemetry data such as voltage and current back to the receiver. The AR630+ throttle port (Channel 1 only) automatically detects a Smart-compatible ESC. ESCs with Smart and IC series connectors can pass battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible for Smart Technology features.
To use Smart features, pair a Smart ESC with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. A transmitter update may be required. Visit www.spektrumrc.com to register and update your transmitter. Standard ESCs or servos plugged into the throttle port operate normally with PWM signals.
Note: Forward Programming devices are not supported by these transmitters: DX6i, DX6G2 (EU), DX7, DX7S, DX7SE, DX7G2 (EU), DX8, and non-computer transmitters.
Features- Streamlined, end-pin design in a lightweight hard case
- Bind button allows easy binding, no bind plug needed
- Fly-by-range telemetry support
- Standard servo connectors
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The AR630+ features fly-by-range telemetry, a bind button for easy binding with no plugs necessary, SmartSafe technology, Hold Last, and preset failsafe types set through Forward Programming. It also supports Smart Telemetry and Smart Throttle, and allows Smart Model Files so BNF models can be stored on the receiver to automatically set the model at bind.
With Smart Technology, the normal servo connector delivers the throttle signal to the ESC, while the ESC sends telemetry data such as voltage and current back to the receiver. The AR630+ throttle port (Channel 1 only) automatically detects a Smart-compatible ESC. ESCs with Smart and IC series connectors can pass battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible for Smart Technology features.
To use Smart features, pair a Smart ESC with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. A transmitter update may be required. Visit www.spektrumrc.com to register and update your transmitter. Standard ESCs or servos plugged into the throttle port operate normally with PWM signals.
Note: Forward Programming devices are not supported by these transmitters: DX6i, DX6G2 (EU), DX7, DX7S, DX7SE, DX7G2 (EU), DX8, and non-computer transmitters.
Features- Streamlined, end-pin design in a lightweight hard case
- Bind button allows easy binding, no bind plug needed
- Fly-by-range telemetry support
- Standard servo connectors
