Castle Creations COBRA 10, 6S MAX, 25.2V MAX, 8A PEAK BEC CC010-0174-00

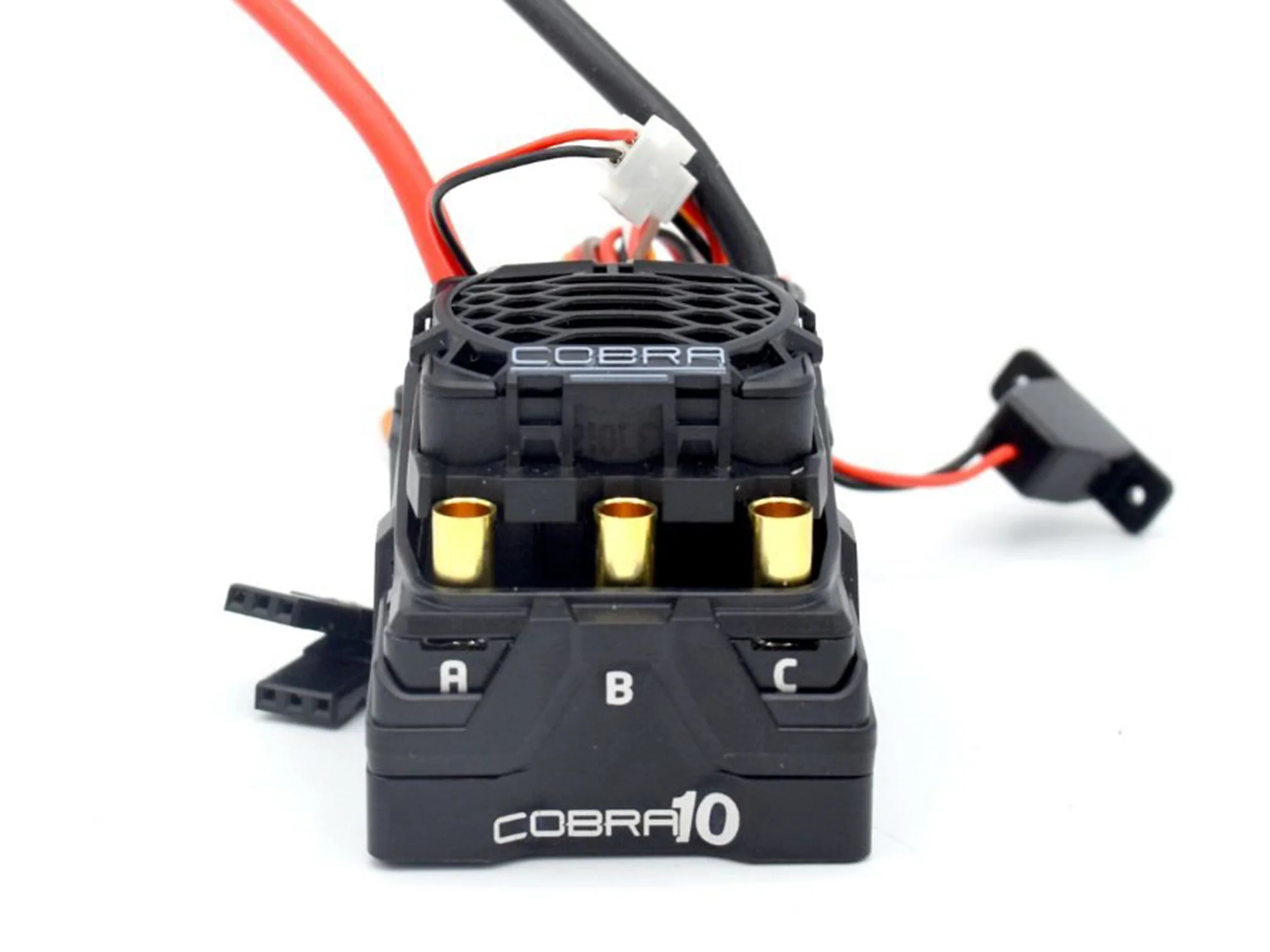

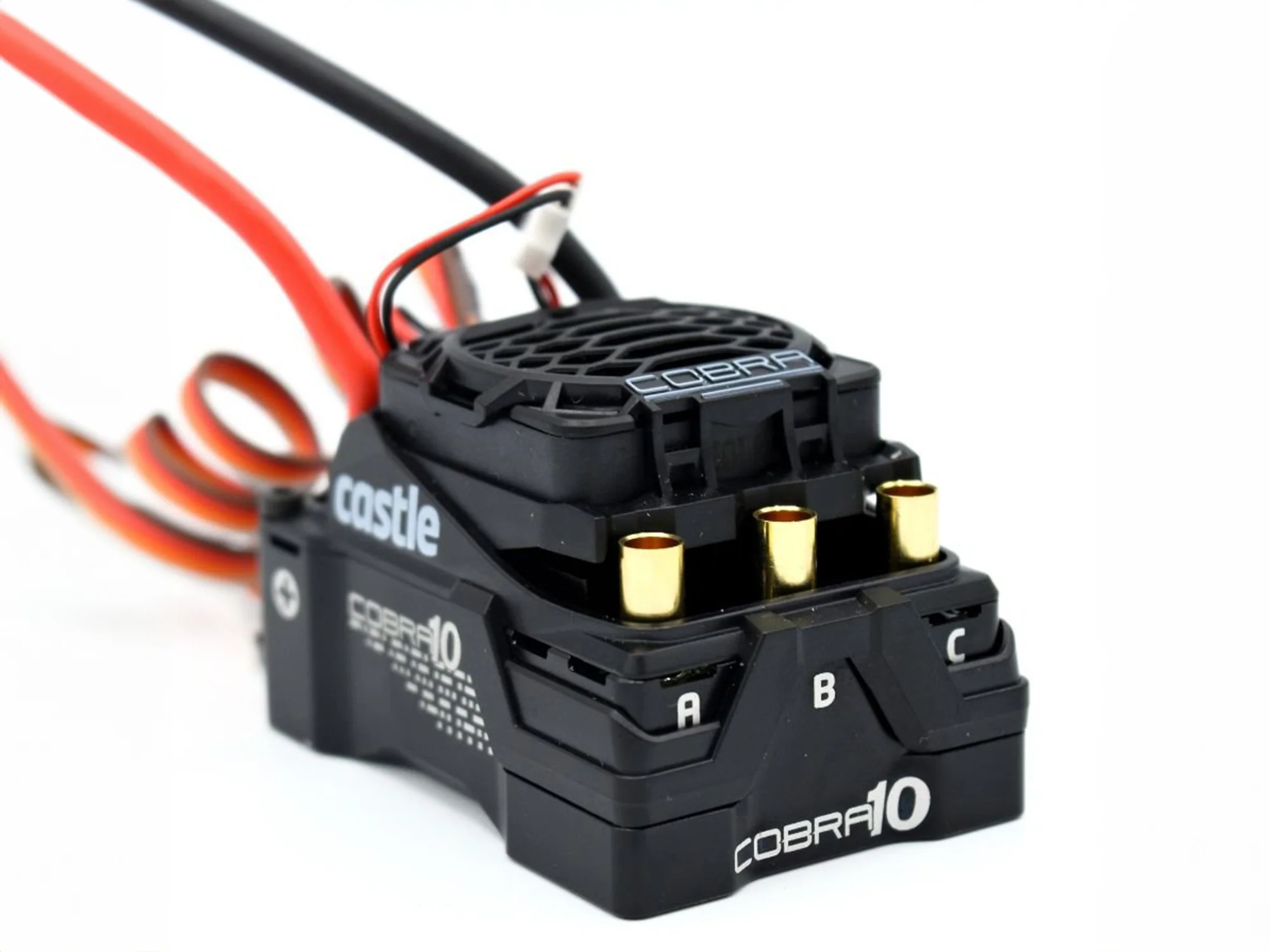

Castle Creations Cobra 10 ESC – Next Generation Surface ESC

Castle Creations proudly introduces the Cobra 10, their next-generation electronic speed controller (ESC) for surface applications. Featuring a state-of-the-art 32-bit dual-core processor, the Cobra 10 delivers unmatched precision and performance. Enhanced data logging offers extended recording times, faster sampling rates, and a wealth of data points, enabling you to analyze your vehicle’s performance like never before.

Crafted with a CNC aluminum bottom case, the Cobra 10 is built to withstand the toughest conditions, ensuring reliability in every race or off-road adventure. Its acclaimed CRYO-DRIVE technology reduces operational temperatures, extending the lifespan of the ESC. Equipped with an 8-amp BEC, it can power even the most demanding servos, making it a high-performance essential.

The Cobra 10 is designed for:

• 1:10 scale vehicles up to 3.17kg (7 lbs)
• 1:8 scale buggies geared for off-road racing up to 4.08kg (9 lbs)

In The Box:

• Cobra 10 ESC
• Castle Link V4 USB Adapter (USB-C)
• 250mm Direct Connect Sensor Wire
• Castle Decals
• ESC Quick Start Guide

ESC Features:

• 32-bit processing for smoother motor control and faster response
• Enhanced Data Logging:
  • Double the maximum sample frequency of older generations
  • 8x increased logging time
  • ESC electrical motor timing data
  • Acceleration data via onboard accelerometer
  • Looping feature prevents interruptions in data recording
  • Ability to download specific sessions
• Hill Hold feature for rock crawling and steep inclines
• Drag brake enhancement eliminates motor creep on inclines
• Tuning Features:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V – 8.0V in 0.1V increments)
  • Firmware updates and tuning via Castle Link V4 USB programmer
  • Mounting holes in bottom of aluminum case
• Input Voltage Range: 6.0V – 25.2V (2S – 6S LiPo)
• Operating Modes: SmartSense, Sensored Only, Brushed Motor
• Powerful Integrated 8A Peak Adjustable BEC
• CRYO-DRIVE technology reduces heat during partial throttle operation
• Rugged CNC aluminum case potted in waterproof epoxy
• Premium forged heatsink with elliptical fins for superior airflow
• Oversized factory-equipped 25mm thermally controlled cooling fan
• Waterproof design for all-weather use
• Auxiliary wire for on-the-fly transmitter adjustments
• Audible alerts for motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six adjustable settings, including cutoff voltage and drag brake
