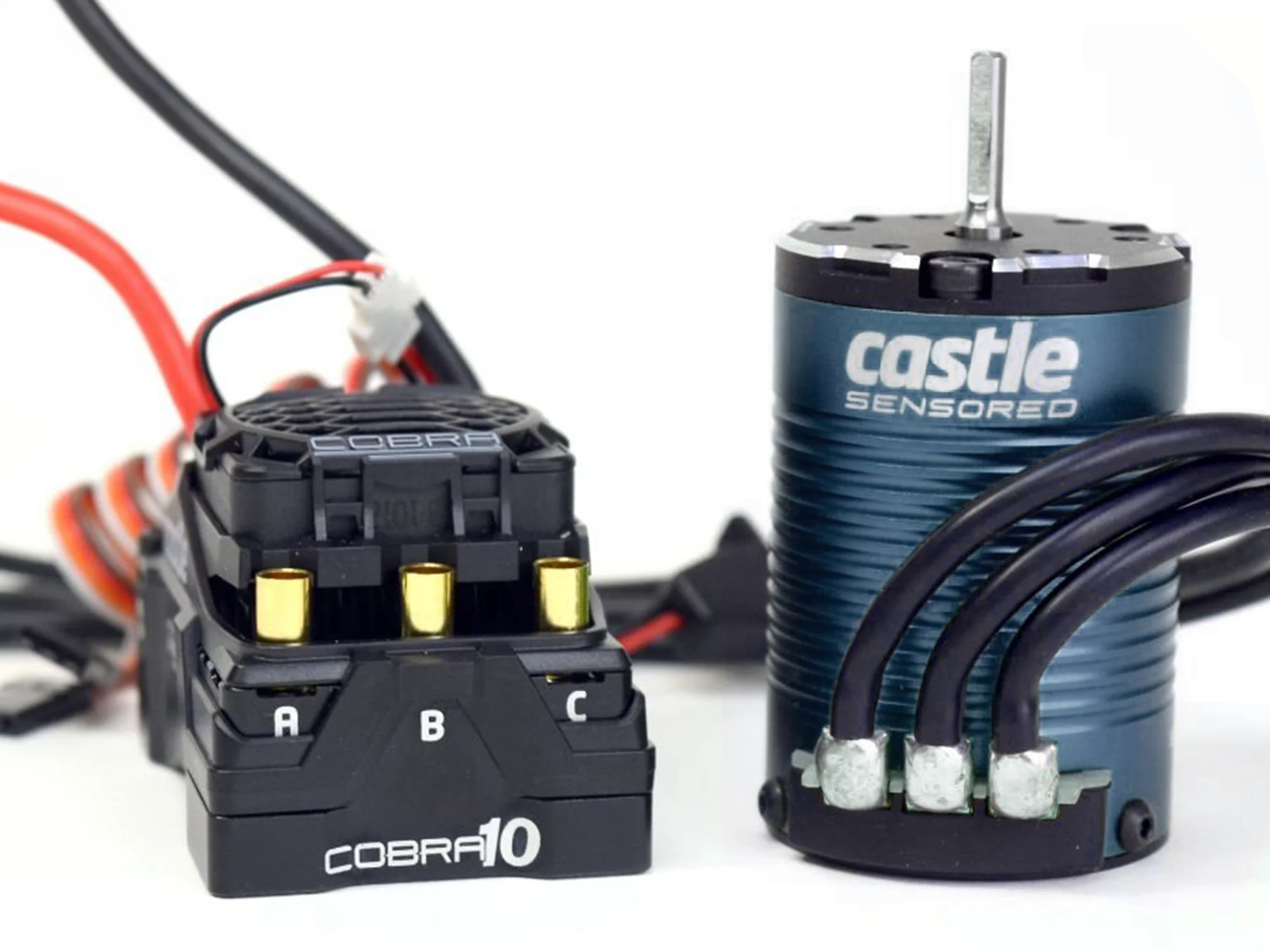

Castle Creations COBRA 10, 6S MAX, 8A W/1406-3800KV SENSORED MOTOR CC010-0174-08

The Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.

Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

One of its defining features is our acclaimed CRYO-DRIVE technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 10 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

Ideal for low speed crawling or trail running in vehicles weighing up to 4.08Kg (9lbs) on 2s or 3s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 2.27Kg (5lbs).

In The Box

• Cobra 10 ESC
• 1406-3800Kv sensored brushless motor
• Castle Link V4 USB Adapter
• 249mm Direct Connect Sensor Wire
• Castle Decals
• ESC Quick Start Guide

Features

• 32-Bit Processing power for smoother motor control and improved response time.
• Enhanced Data Logging includes:
  • Double the maximum sample frequency of older generations.
  • 8x increased logging time of older generations.
  • Data point for ESC electrical motor timing.
  • Data point for acceleration via onboard accelerometer.
  • Looping feature prevents interruptions in data log recording.
  • Ability to download specific sessions.
• Hill Hold feature
  • Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline
• Additional tuning features include:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
• Mounting holes located in bottom of aluminum case for installation into vehicle.
• Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo); 3s max with included 1406-3800kv motor
• SmartSense, Sensored Only and Brushed Motor Operation Modes
• Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
• CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
• Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
• Oversized factory equipped thermally controlled 25mm cooling fan
• Waterproof design for all weather conditions
• Data logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
