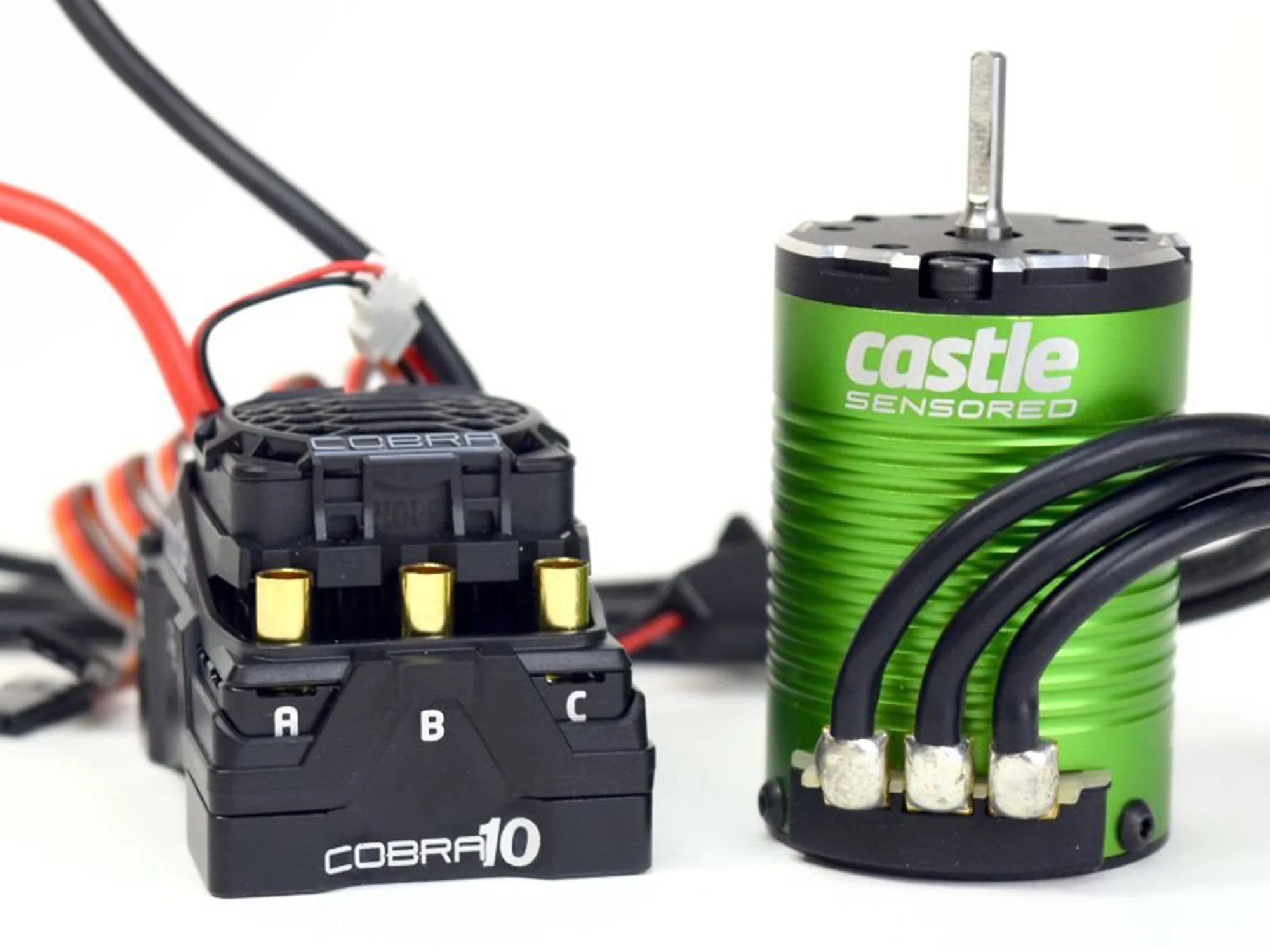

Castle Creations COBRA 10, 6S MAX, 8A W/1406-4600KV SENSORED MOTOR CC010-0174-01

Castle Creations Cobra 10 ESC – Next Generation Surface ESC

We're thrilled to introduce the Cobra 10, our next-generation electronic speed controller (ESC) for surface applications. Featuring a state-of-the-art 32-bit dual-core processor, the Cobra 10 delivers unmatched precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to analyze their vehicle's performance like never before.

Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to withstand the most rigorous conditions, ensuring reliability in every race or off-road adventure. Its acclaimed CRYO-DRIVE technology reduces operational temperatures, significantly prolonging the ESC's lifespan. Equipped with an 8-amp BEC, it can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

Suggested Applications: Perfect combo for 1/10th scale vehicles weighing less than 2.27Kg (5 lbs), including 1/10th scale touring cars, buggies, and stadium trucks up to 3S LiPo. It can also be used in 1/10th scale 2WD Short Course Trucks on 2S LiPo with conservative gearing. Not intended for 4WD short course trucks.

In The Box:

• Cobra 10 ESC
• 1406-4600KV sensored brushless motor
• Castle Link V4 USB Adapter (USB-C)
• 249mm Direct Connect Sensor Wire
• Castle Decals
• ESC Quick Start Guide

ESC Features:

• 32-bit processing for smoother motor control and improved response
• Enhanced Data Logging:
  • Double the maximum sample frequency of older generations
  • 8x increased logging time
  • Data point for ESC electrical motor timing
  • Data point for acceleration via onboard accelerometer
  • Looping feature prevents interruptions in data recording
  • Ability to download specific sessions
• Hill Hold feature for rock crawling and steep inclines
• Drag brake enhancement eliminates motor creep on inclines
• Tuning Features:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V – 8.0V in 0.1V increments)
  • Firmware updates and tuning via Castle Link V4 USB programmer
  • Mounting holes in bottom of aluminum case
• Input Voltage Range: 6.0V – 25.2V (2S – 6S LiPo; 3S max with included 1406-4600KV motor)
• Operating Modes: SmartSense, Sensored Only, Brushed Motor
• Powerful Integrated 8A Peak Adjustable BEC
• CRYO-DRIVE technology minimizes heat generation during partial throttle
• Rugged CNC aluminum case potted in waterproof epoxy for durability and heat transfer
• Premium forged heatsink with elliptical fins for superior airflow
• Oversized factory-equipped 25mm thermally controlled cooling fan
• Waterproof design for all-weather use
• Auxiliary wire functionality for on-the-fly transmitter adjustments
• Audible alerts for motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six adjustable settings including cutoff voltage and drag brake
