Castle Creations COBRA 8, 6S MAX ESC CC010-0172-00

Castle Creations Cobra 8 ESC

Introducing the Cobra 8, Castle's next-generation electronic speed controller (ESC) for surface applications. Engineered with cutting-edge technology, the Cobra 8 is tailored specifically for 1:8th scale vehicles weighing up to 6.8 kg (15 lbs). Note: The Cobra 8 ESC is not intended for drag racing applications.

Powered by a 32-bit dual-core processor, the Cobra 8 delivers smoother motor control, improved response time, and enhanced precision. Advanced data logging provides extended recording times, faster sampling rates, and detailed performance metrics, allowing users to gain deeper insights into their vehicle's performance.

Crafted with a CNC aluminum bottom case, the Cobra 8 is built to endure rigorous conditions. Its CRYO-DRIVE technology reduces operational temperatures, prolonging ESC lifespan, and an 8-amp BEC ensures even the most demanding servos are powered efficiently.

In The Box:

• Cobra 8 ESC
• Castle Link V4 USB Adapter (USB-C)
• 300mm Direct Connect Sensor Wire
• Cobra Decals
• ESC Quick Start Guide

Features:

• 32-bit processing power for smoother motor control and faster response
• Enhanced Data Logging:
  • Double the maximum sample frequency of older generations
  • 8x increased logging time
  • Data points for ESC electrical motor timing
  • Acceleration data via onboard accelerometer
  • Looping feature prevents interruptions in recording
  • Download specific sessions for analysis
• Additional tuning features:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V - 8.0V adjustable in 0.1V increments)

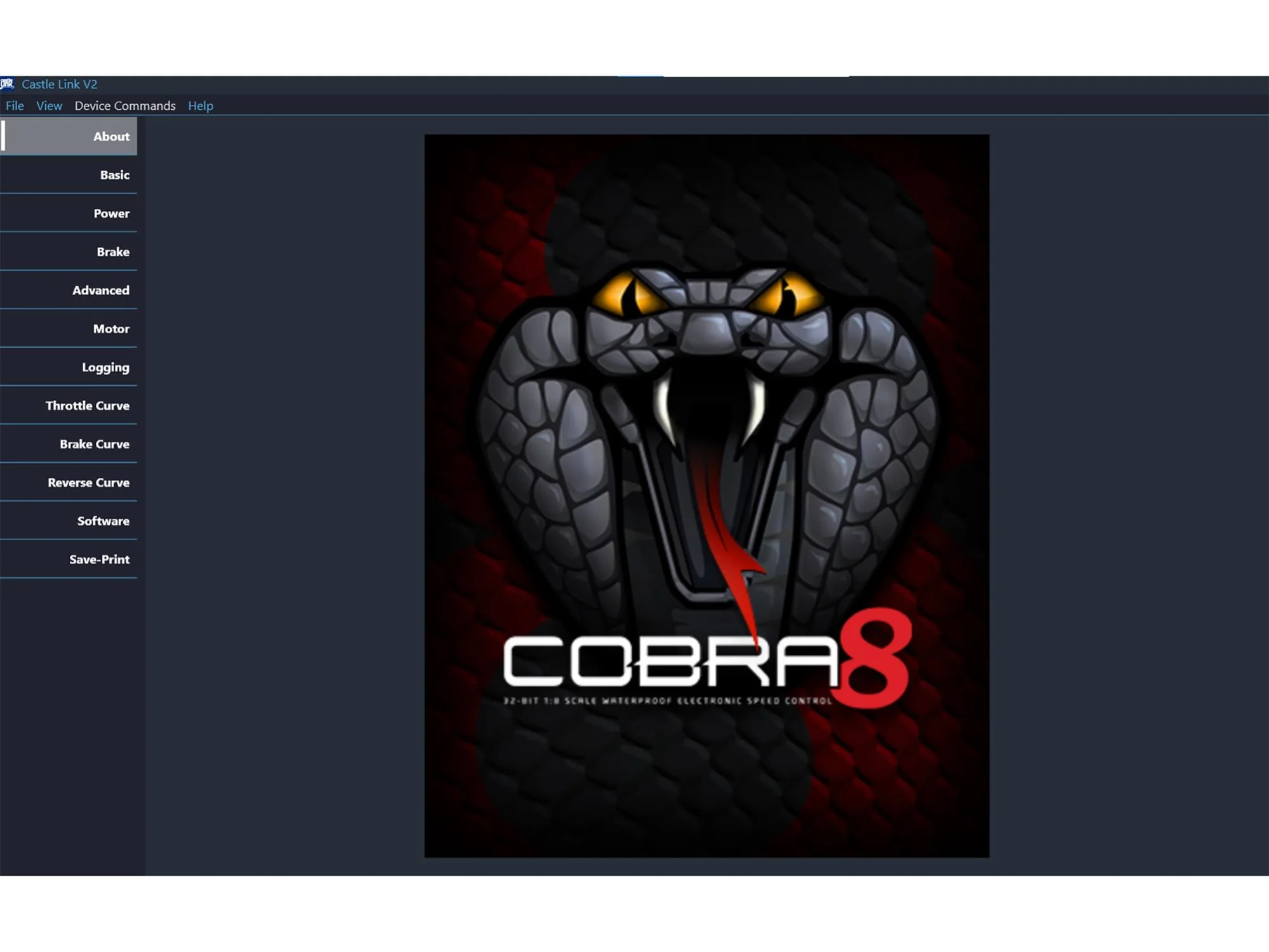

• Access tuning options and firmware updates via Castle Link V4 USB programmer
• Mounting holes located in bottom of aluminum case
• Input voltage range: 6.0V – 25.2V (2S – 6S LiPo)
• Operating modes: SmartSense, Sensored Only, Brushed Motor
• Powerful integrated 8A peak adjustable BEC (5.0V – 8.0V)
• CRYO-DRIVE technology minimizes heat generation and improves thermal performance
• Rugged CNC aluminum case potted in waterproof epoxy
• Premium forged heatsink with elliptical fins for superior airflow and heat dissipation
• Oversized factory-equipped thermally controlled 30mm cooling fan
• Waterproof design for all-weather operation
• Data logging to capture and record performance data
• Auxiliary wire functionality for "on-the-fly" adjustments via transmitter
• Audible alerts for motor over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Castle Link V4 USB adapter included for Windows (USB-C)
