Castle Creations COBRA8, 4S MAX W/1512-1800KV SENSORED MOTOR COMBO CC010-0172-01

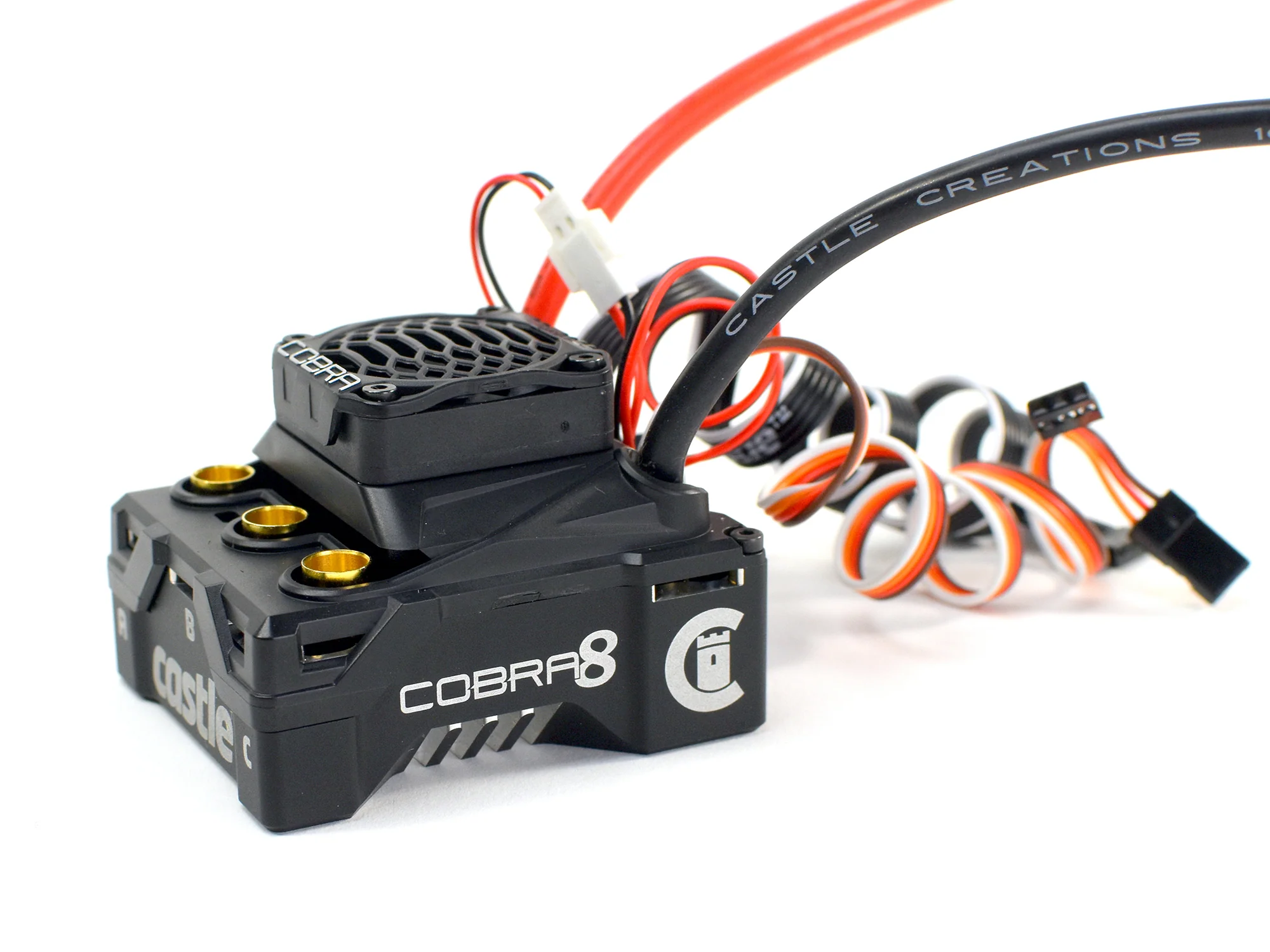

Castle Creations Cobra 8 ESC

Introducing the Cobra 8, Castle's next-generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology specifically for 1:8th scale vehicles weighing up to 6.8 kg (15 lbs).

Featuring a state-of-the-art 32-bit dual-core processor, the Cobra 8 provides unmatched precision and performance. Enhanced data logging offers extended recording times, faster sampling rates, and detailed performance metrics, allowing users to analyze their vehicle like never before.

Crafted with a CNC aluminum bottom case, the Cobra 8 is designed to withstand the toughest conditions. Its acclaimed CRYO-DRIVE technology reduces operational temperatures, significantly prolonging ESC lifespan, while the integrated 8-amp BEC powers even the most demanding servos.

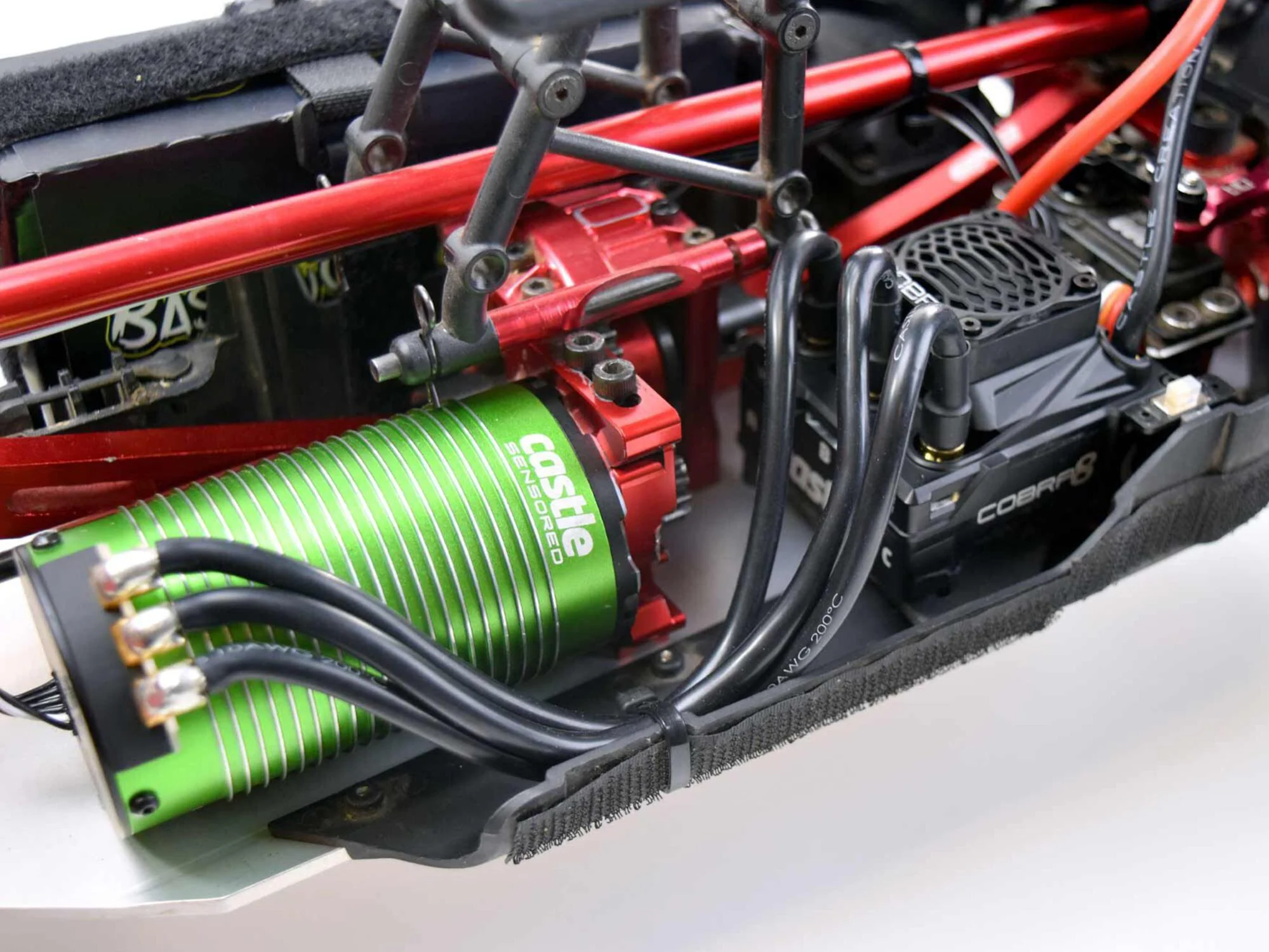

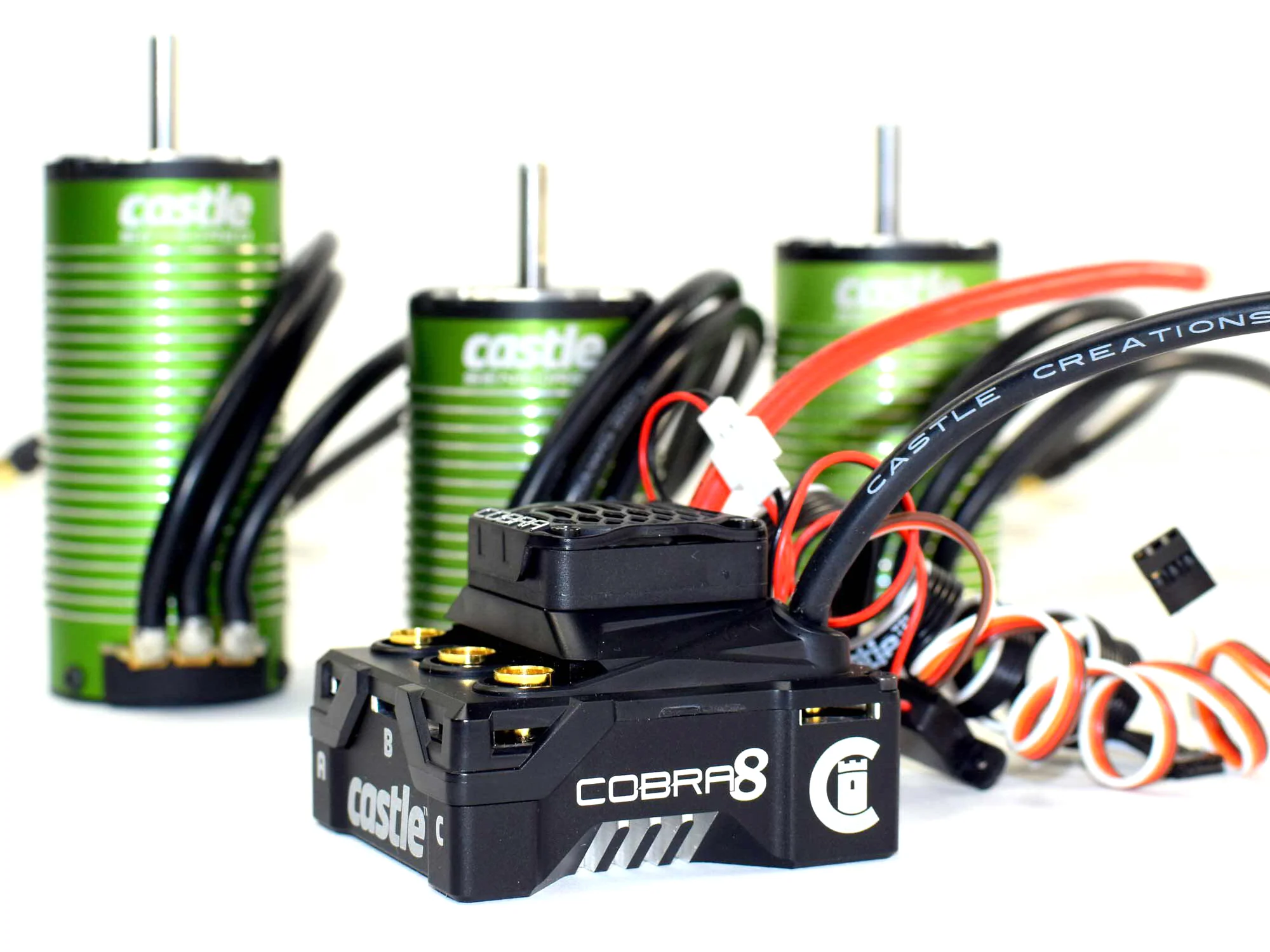

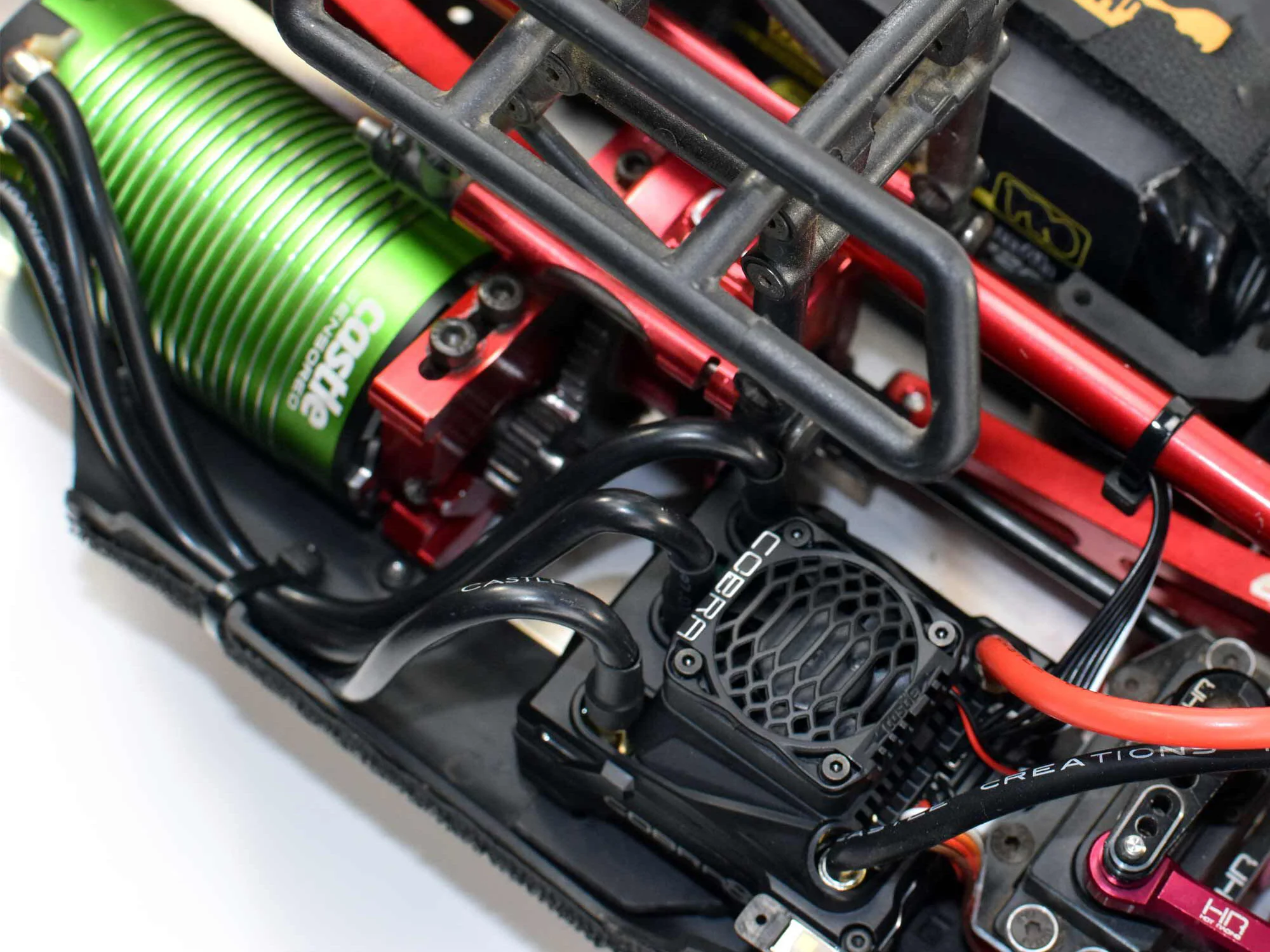

The Cobra 8 package includes three Castle 4-pole 12-slot motor options. This setup comes with a Castle 1512-1800Kv sensored brushless motor, ready to deliver top-tier performance for 1:8th scale off-road and on-road vehicles, as well as 1:10 scale 4WD SCT vehicles up to 4 kg (9 lbs).

In The Box:

• Cobra 8 ESC
• 1512-1800Kv Sensored Brushless Motor
• Castle Link V4 USB Adapter (USB-C)
• 300mm Direct Connect Sensor Wire
• Cobra Decals
• ESC Quick Start Guide

ESC Features:

• 32-bit processing power for smoother motor control and improved response

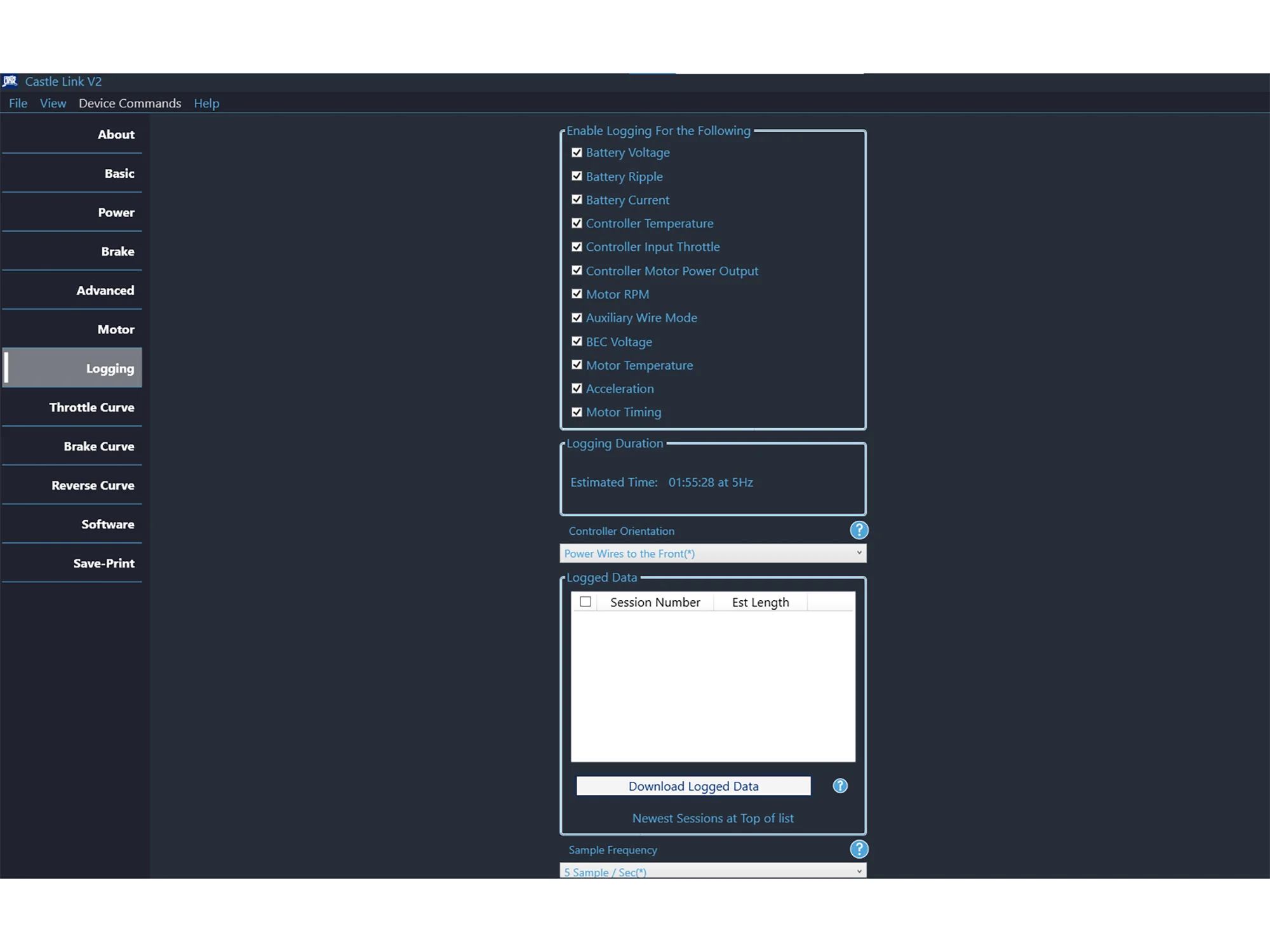

• Enhanced Data Logging:
  • Double the maximum sample frequency of older generations
  • 8x increased logging time
  • Data points for ESC electrical motor timing
  • Acceleration data via onboard accelerometer
  • Looping feature prevents interruptions in data log recording
  • Ability to download specific sessions
• Additional tuning features:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V – 8.0V adjustable in 0.1V increments)

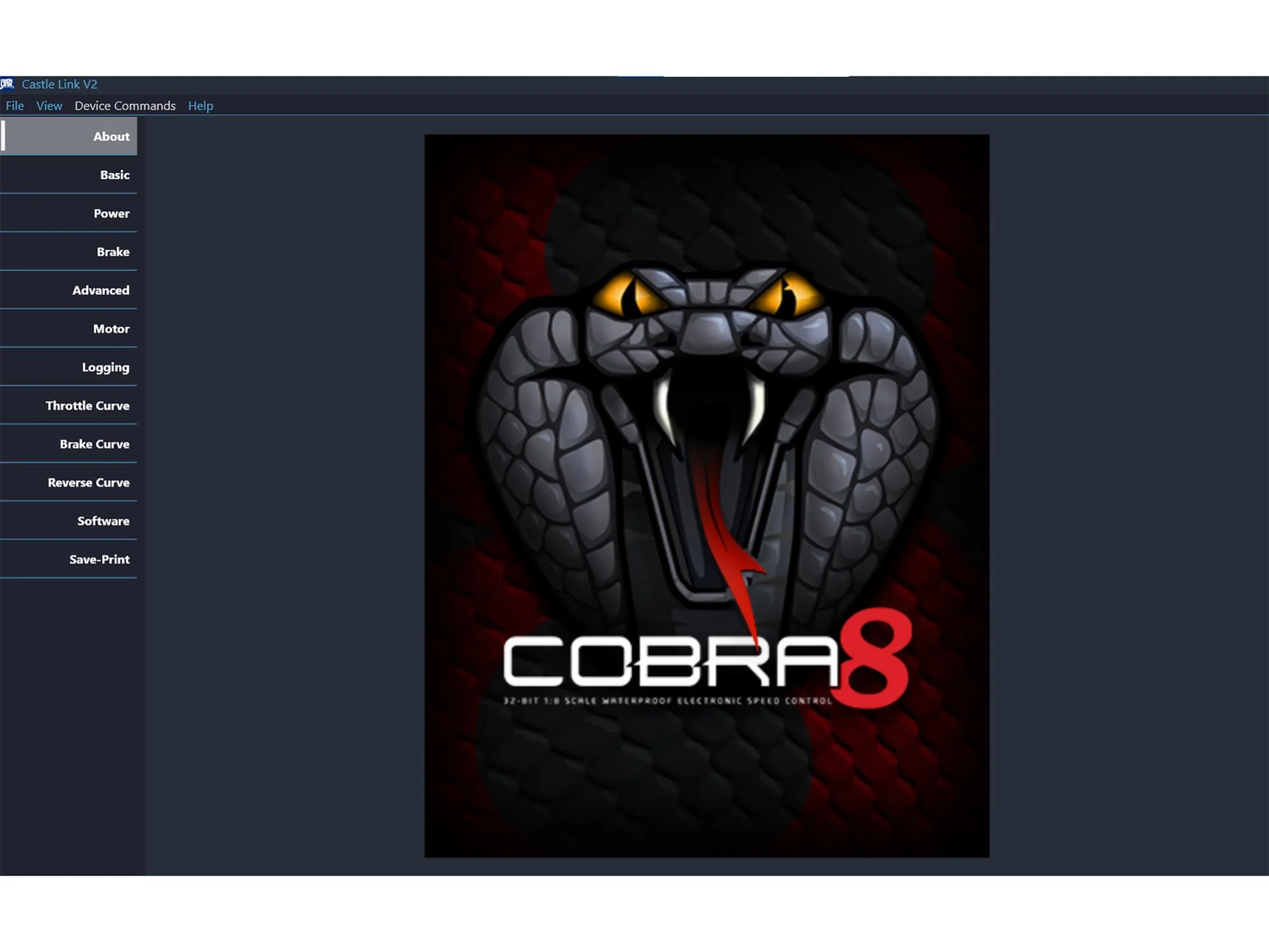

• Access tuning options and firmware updates via Castle Link V4 USB programmer
• Mounting holes on bottom of aluminum case for easy installation
• Input Voltage Range: 6.0V – 25.2V (2S – 6S LiPo)
• Operating Modes: SmartSense, Sensored Only, Brushed Motor
• Powerful integrated 8A peak adjustable BEC (5.0V – 8.0V)
• CRYO-DRIVE technology minimizes heat generation and improves thermal performance
• Rugged CNC aluminum case potted in waterproof epoxy
• Premium forged heatsink with elliptical fins for superior airflow and heat dissipation
• Oversized, factory-equipped, thermally controlled 30mm cooling fan
• Waterproof design for all-weather operation
• Auxiliary wire functionality for on-the-fly adjustments via transmitter
• Audible alerts for motor over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Castle Link V4 USB adapter included for Windows (USB-C)
