Castle Creations COBRA8,6S MAX 1515-2200KV V2 SENSORED MOTOR COMBO CC010-0172-03

Castle Creations Cobra 8 ESC – 1515-2200Kv Sensored Motor Combo

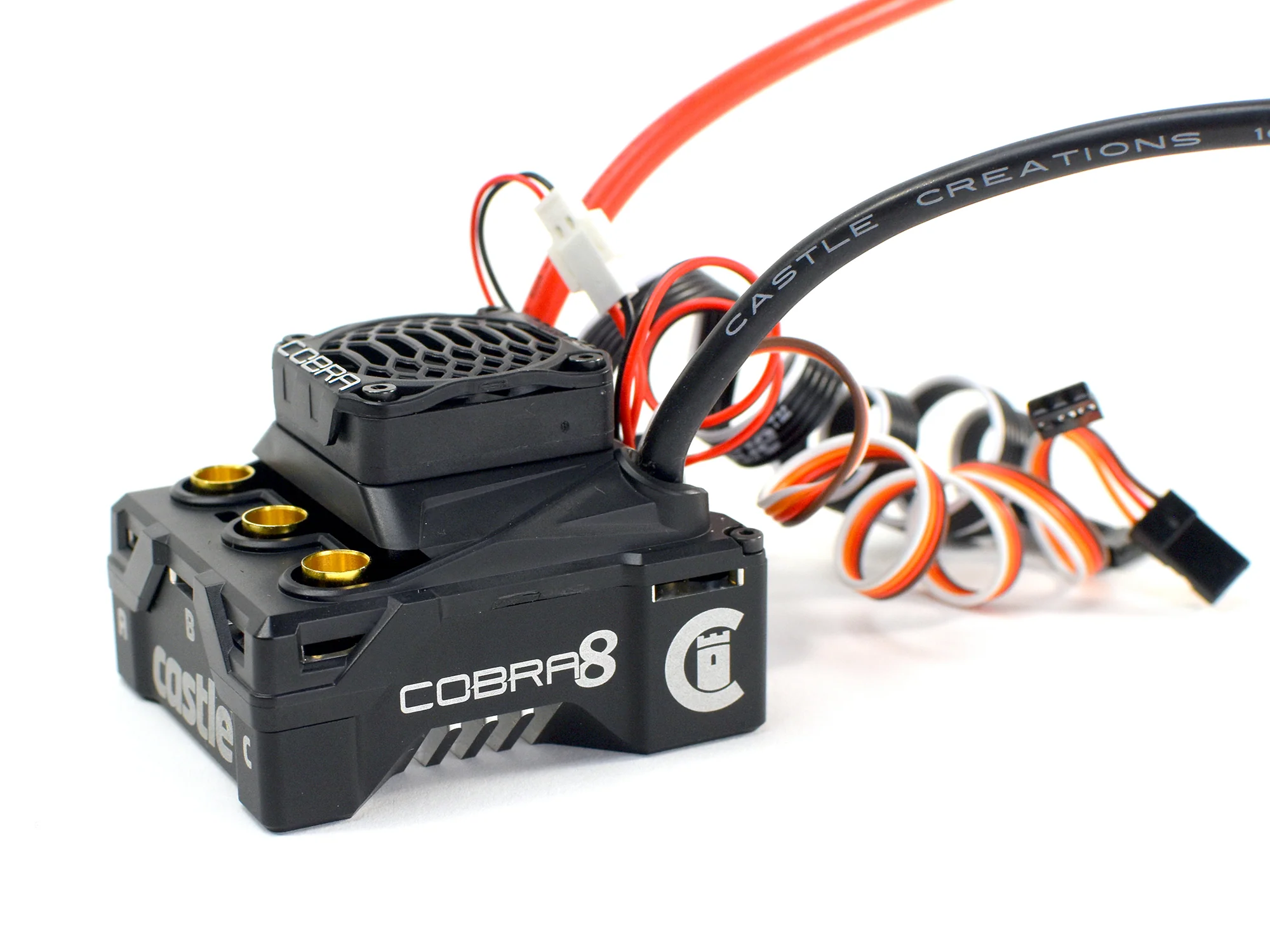

Introducing the Cobra 8, Castle's next-generation electronic speed controller (ESC) for surface applications. Engineered for 1:8th scale vehicles up to 6.8 kg (15 lbs), the Cobra 8 ushers in a new era of precision and performance with its 32-bit dual-core processor and enhanced data logging capabilities, allowing detailed analysis of your vehicle’s performance.

Built with a CNC aluminium bottom case, the Cobra 8 is designed to withstand the most rigorous conditions. Its CRYO-DRIVE technology reduces operational temperatures, prolonging ESC lifespan, and the integrated 8-amp BEC powers even the most demanding servos.

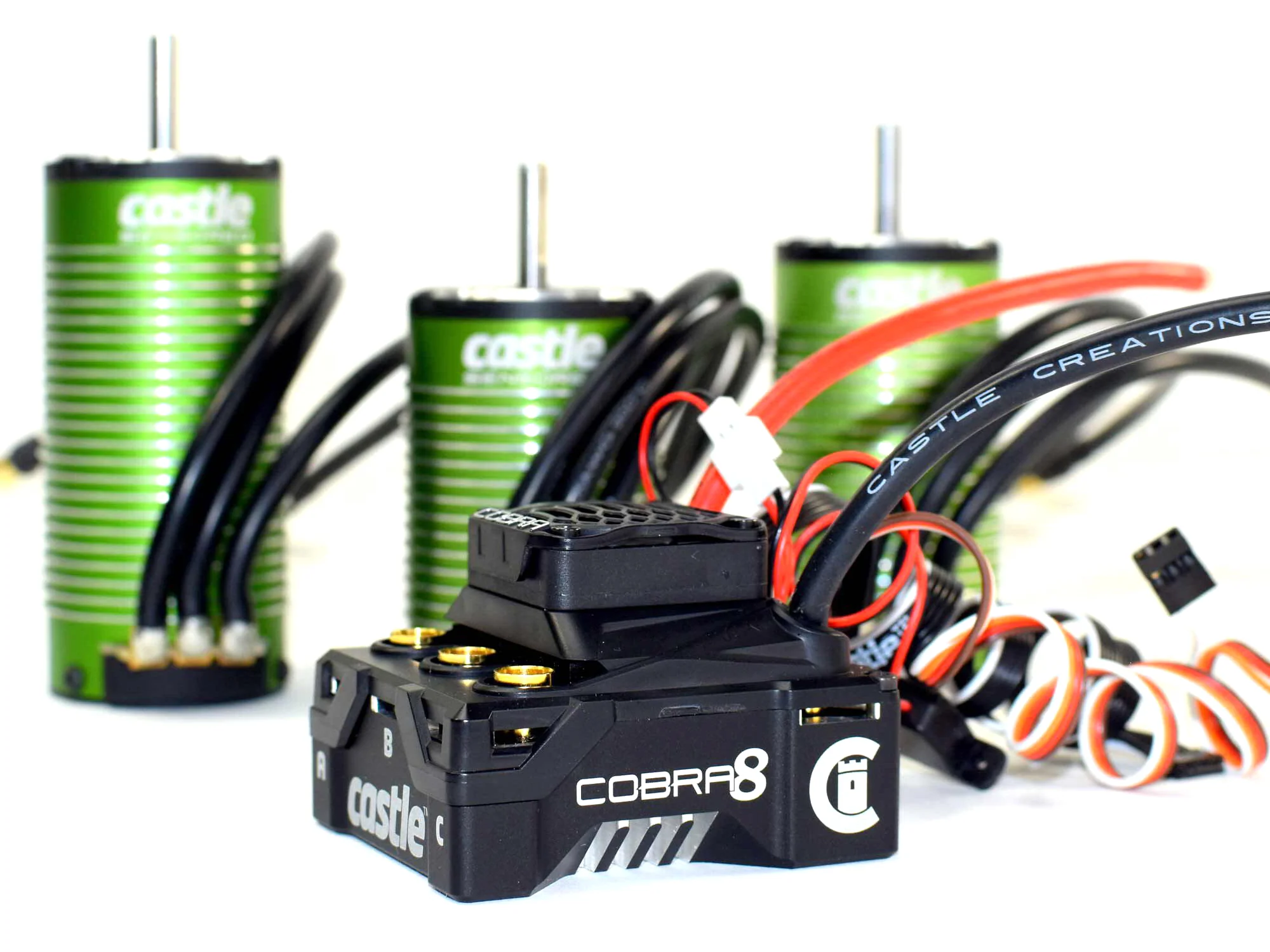

This package includes a Castle 1515-2200Kv sensored brushless motor, perfect for monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot). It also excels in 1:8 scale buggies, truggies, on-road vehicles, and 1:10 scale monster trucks up to 6.8 kg (15 lbs).

In The Box:

• Cobra 8 ESC
• 1515-2200Kv Sensored Brushless Motor
• Castle Link V4 USB Adapter (USB-C)
• 300mm Direct Connect Sensor Wire
• Cobra Decals
• ESC Quick Start Guide

ESC Features:

• 32-bit processing power for smoother motor control and improved response

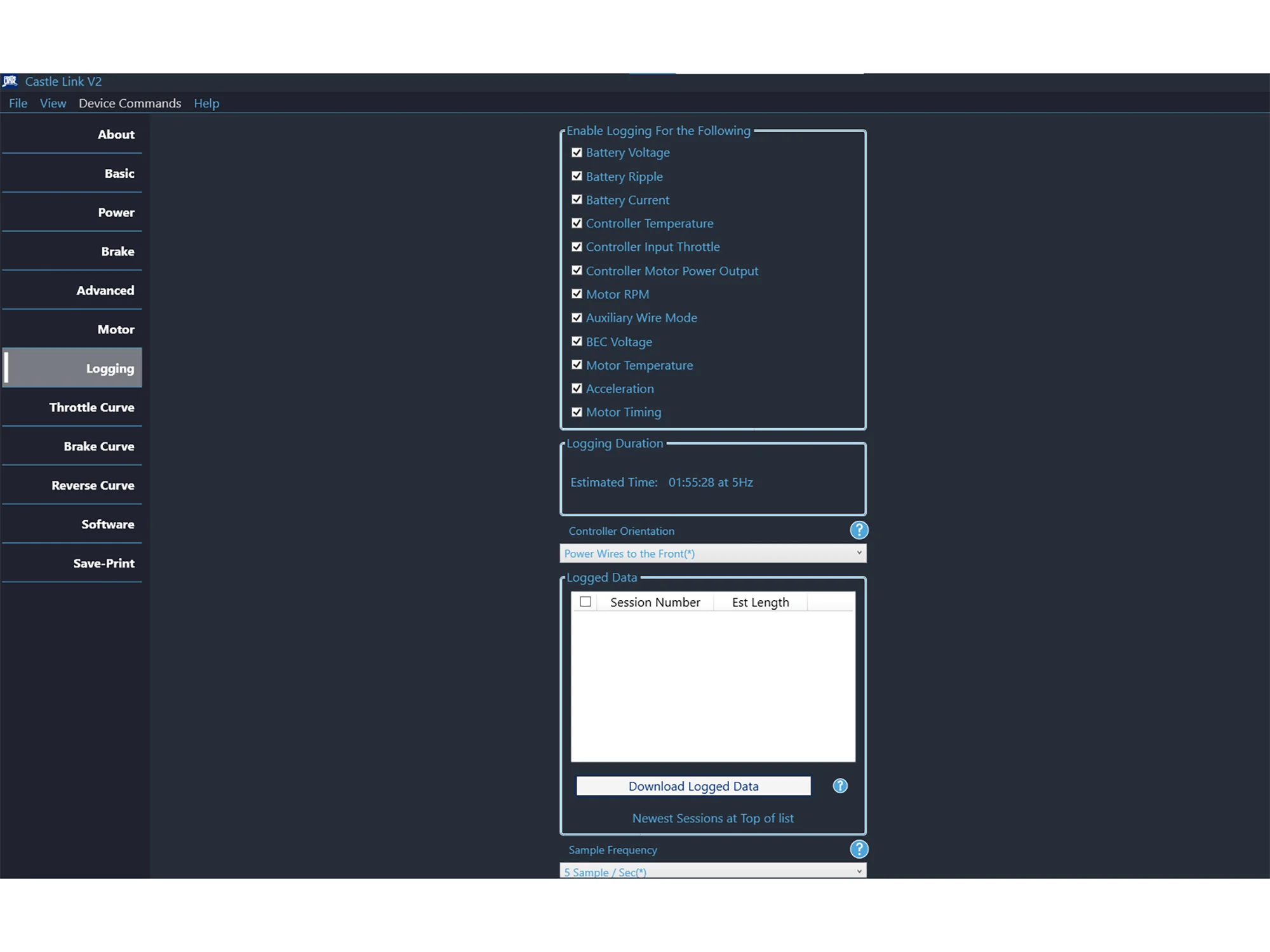

• Enhanced Data Logging:
  • Double the sample frequency of older generations
  • 8x increased logging time
  • ESC electrical motor timing data
  • Acceleration data via onboard accelerometer
  • Looping prevents interruptions in data log recording
  • Ability to download specific sessions
• Tuning Features:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V – 8.0V in 0.1V increments)

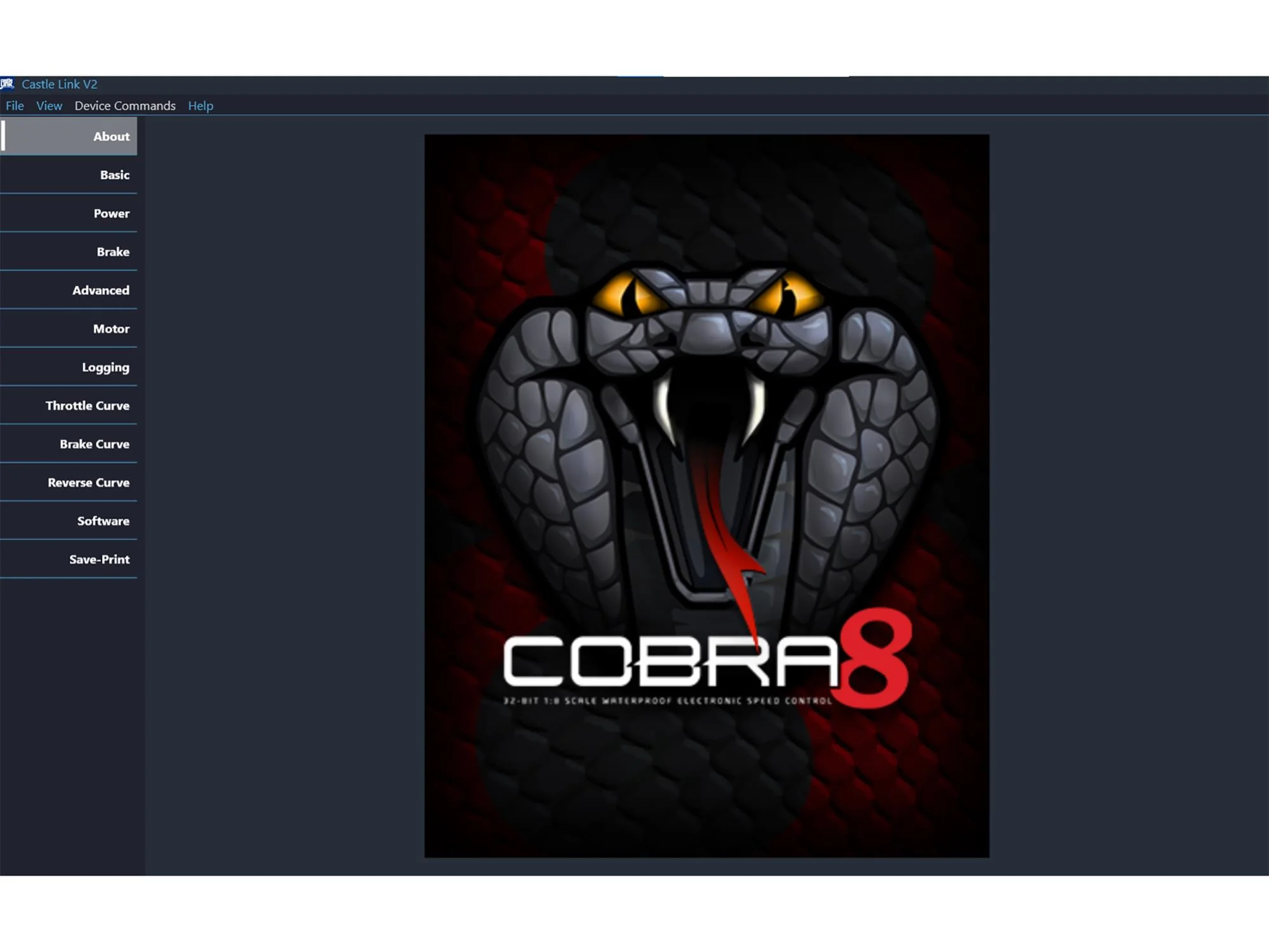

• Firmware updates and tuning via Castle Link V4 USB programmer
• Mounting holes in bottom of aluminum case for installation
• Input Voltage: 6.0V – 25.2V (2S – 6S LiPo)
• Operating Modes: SmartSense, Sensored Only, Brushed Motor
• Powerful 8A Peak Adjustable BEC
• CRYO-DRIVE technology for improved thermal performance
• Rugged CNC aluminum case, potted in waterproof epoxy
• Premium forged heatsink with elliptical fins for airflow and heat dissipation
• Oversized thermally controlled 30mm cooling fan
• Waterproof design for all-weather use
• Auxiliary wire for on-the-fly adjustments via transmitter
• Audible alerts for motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake

Includes Castle Link V4 USB adapter for Windows (USB-C)
