Castle Creations MONSTER X 25.2V ESC, 8A PEAK BEC W/1512-2650KV V2 CC010-0145-07

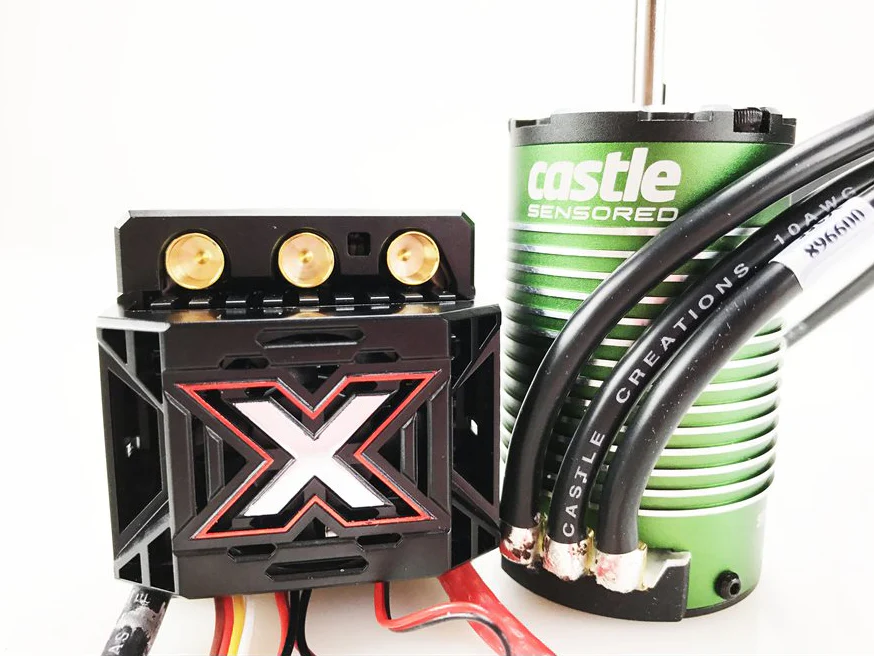

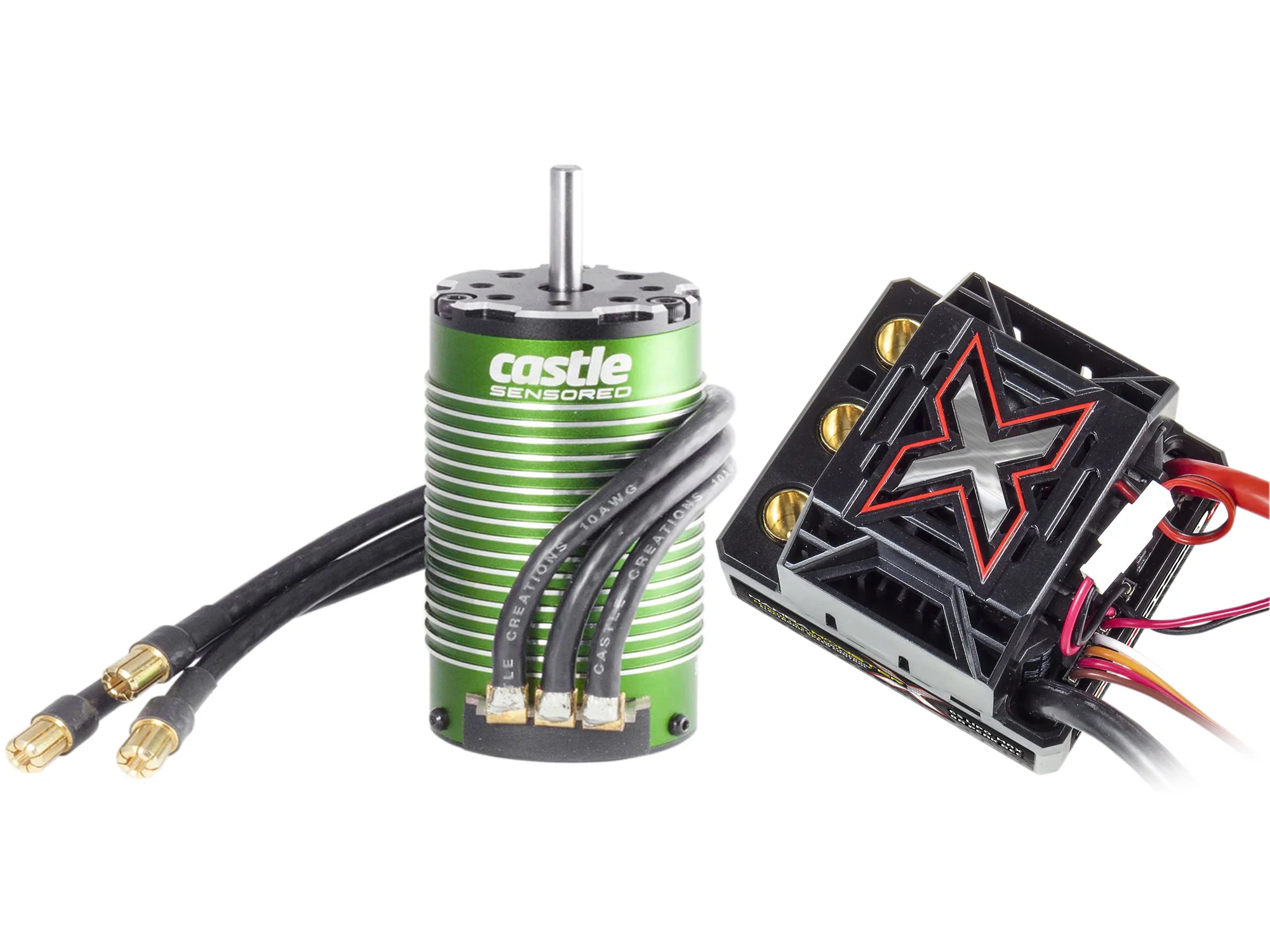

Castle Creations Mamba Monster X ESC & 2650KV V2 Sensored Motor

First came the Monster, then the Monster 2, and now the Monster X. The Monster X Electronic Speed Controller (ESC) elevates Castle's legendary performance to the next level. Waterproof*, it supports 2S LiPo up to 6S LiPo and is ideal for 1/8th scale buggies, truggies, on-road vehicles, and 1/10th scale monster trucks up to 15 lbs.

The Monster X offers extreme performance, including a programmable Auxiliary Wire that allows "on-the-go" adjustments for torque control, max throttle, and other settings via a compatible transmitter. AUX wire functionality is programmable via Castle Link and disabled by default. Updated Audible Alerts notify drivers of calibration issues and error conditions for easier troubleshooting in the field.

The Monster X can be configured to run sensored brushless motors with an optional Sensor Harness. Beta testers report flawless performance in sensored mode, with smooth transitions between sensored and non-sensored operation.

Battery support ranges from 2S to 6S LiPo, and it features a heavy-duty adjustable BEC, with voltages of 5.5V, 6.0V, 7.5V, and 8.0V. Output is rated at 4.5A continuous and 8A peak. A highly efficient 30mm cooling fan is included for optimal performance.

New to Monster X is data logging capability, allowing performance capture and analysis via the Castle Quick Connect Duo (sold separately). Telemetry-ready, owners with Futaba T4PX transmitters can monitor real-time ESC temperature, voltage, and RPM using the Castle Creations S.BUS Telemetry Link.

In The Box:

• 1 × Mamba Monster X Waterproof Electronic Speed Control
• 1 × 2650KV V2 Sensored Motor

Application:

Ideal for 1:8 scale off-road and on-road vehicles, as well as 1:10 scale 4WD SCT up to 9 lbs.

Features:

• Input Voltage Range: 2S–6S LiPo
• Powerful integrated 8A Adjustable BEC (5.25V–8.0V)
• Data logging capability to capture and record performance data
• Waterproof design for all-weather operation
• Factory-installed 30mm removable cooling fan
• Convenient transmitter programming for six adjustable settings
• Easy programming and updates via Castle Link USB (coupon included)
• Optional smartphone-based programming with B-LINK Bluetooth Adapter
• Telemetry-ready compatible with Futaba S.Bus2 and T4PX/T7PX transmitters
• Auxiliary Wire functionality for on-the-fly adjustments like Max Power and Max Brake
• Audible Alerts for calibration and error notifications

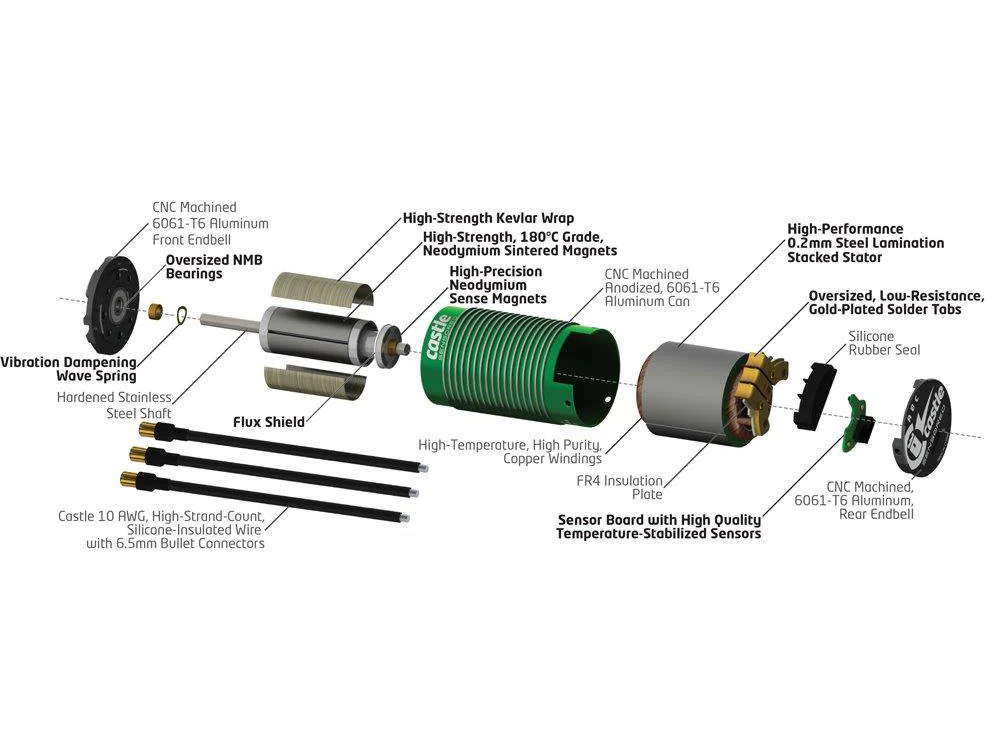

• Redesigned rotor and stator assemblies
• Reduced magnetic cogging for less residual drag brake
• Increased efficiency for lower temperatures and longer run times
• Smoother start-up with reduced cogging/stuttering
• Rebuildable front end bell/bearing assembly and rotor/shaft assembly
• High-strength Kevlar wrap and 180°C grade neodymium magnets
• Oversized NMB bearings and high-temperature copper windings
• Castle 10 AWG high-strand-count silicone-insulated wire with 6.5mm bullet connectors
• High-performance 0.2mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with temperature-stabilized sensors
• T6 aluminum CNC-machined front/rear end bells
